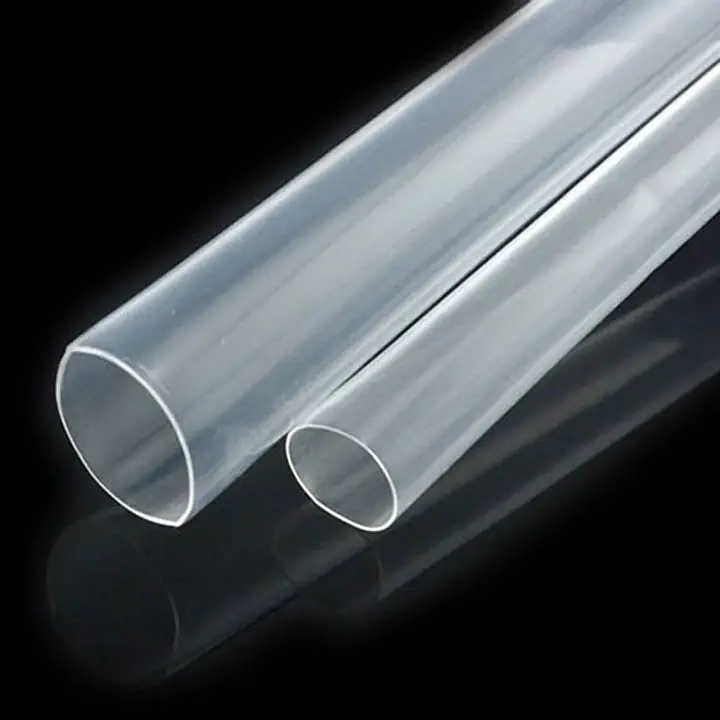

PFA Heat Shrink Tubing Sleeves for Semi-conductor Anti-UV and High Temperature Resistance
Product Overview

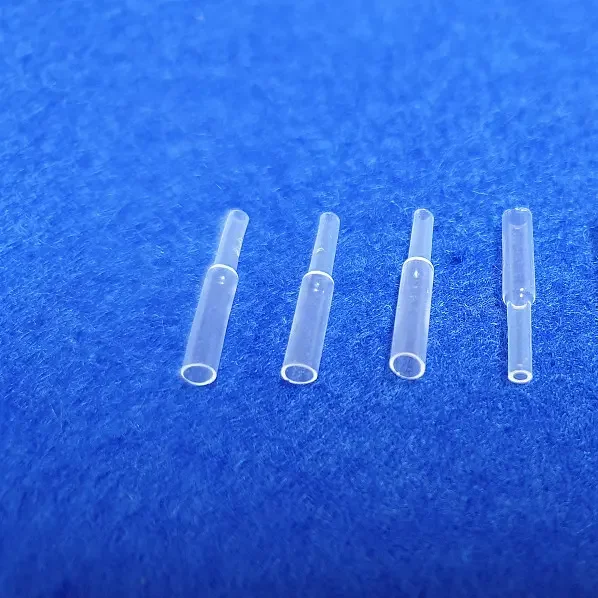

PFA Heat Shrink Tube is a heat-activated fluoropolymer sleeve designed to conform around components, connections, wires, terminals, tubing or other assemblies when heated. Compared with general-purpose heat shrink materials, PFA is selected when chemical resistance, thermal performance, cleanliness and fluoropolymer properties are important.
For demanding process environments, the key value of PFA heat shrink tubing is not simply shrinkage. The recovered sleeve forms a continuous protective layer while retaining the characteristic chemical resistance and high-temperature capability associated with PFA. This makes it suitable for applications where contamination control, aggressive chemicals or elevated operating temperatures can limit conventional heat-shrink materials.
Use the dimensional tables below for initial size selection. Confirm shrink ratio, recovery temperature and operating limits against the approved specification for the required PFA grade and construction.
Key Features
High-purity fluoropolymer material for demanding process environments; Excellent resistance to many aggressive chemicals and process media; Heat-shrinkable construction for conformal protection around irregular assemblies; Low surface energy and smooth surface for easier cleaning and reduced adhesion; Strong electrical insulation performance for wire, cable and component protection; High-temperature capability compared with conventional polymer heat-shrink materials; Good transparency is possible with suitable PFA grades, supporting visual inspection; Suitable for custom dimensions and application-specific OEM production.
Why Choose PFA Heat Shrink Tubing
PFA heat shrink tubing is intended for applications where the protective sleeve itself must withstand a demanding environment. A conventional polyolefin sleeve may provide economical insulation, but it may not offer the required chemical resistance or temperature capability. PFA provides a fluoropolymer-based alternative for more severe service.
The selection should be based on the complete assembly rather than on the tube diameter alone. Installation diameter, recovered diameter, wall thickness, shrink ratio, temperature exposure, chemical environment, electrical requirements and installation method all influence the correct construction.
Product Construction
The product is manufactured from PFA fluoropolymer in a heat-shrinkable tubular construction. The tube is supplied in an expanded state and contracts toward its designed recovered dimensions when exposed to the specified heating conditions.
Base material: PFA fluoropolymer; Form: expanded heat-shrinkable tube / sleeve; Surface: smooth fluoropolymer surface; Standard appearance: natural/translucent to transparent depending on grade and wall thickness; Supply form: straight cut lengths or continuous lengths subject to product design; Construction can be tailored for dimensional, wall-thickness and installation requirements.
Technical Specifications
| Parameter | PFA specification |
| Material | PFA fluoropolymer |
| Product Type | PFA Heat Shrink Tube |
| Construction | Expanded fluoropolymer heat-shrinkable sleeve |
| Appearance | Natural / translucent / transparent depending on grade and construction |
| Shrinkability | Heat activated |
| Expanded ID | See complete dimensional table below; custom sizes available for review |
| Recovered ID | See complete dimensional table below |
| Wall Thickness | Recovered wall thickness as listed in the dimensional table |
| Shrink Ratio | Product-design dependent; confirm from approved datasheet |
| Surface | Smooth, low-friction fluoropolymer surface |
| Chemical Resistance | Excellent resistance to many chemicals; verify against the actual medium |
| Electrical Insulation | Excellent, subject to design and application |
| Temperature Capability | Grade and application dependent; verify continuous and short-term exposure limits |
| Length | Standard table length: 1 m; other lengths subject to agreement |
| Color | Natural fluoropolymer appearance; other options subject to grade/availability |
| Customization | Dimensions, wall thickness, length, tolerances, packaging and OEM requirements |
Complete PFA Heat Shrink Specification Table
PFA heat shrink tubing is available in the same dimensional specifications as our FEP heat shrink tubing. Use the expanded ID, recovered ID and recovered wall thickness below to select the required size. All diameter and wall dimensions are in mm.
| Expanded ID mm | Recovered ID mm | Recovered wall mm | Standard length m |
| ≥3.8 | ≤2.7 | 0.2 ± 0.03 | 1 |
| ≥4.5 | ≤3.3 | 0.2 ± 0.03 | 1 |
| ≥5.5 | ≤4.3 | 0.2 ± 0.03 | 1 |
| ≥7.0 | ≤5.1 | 0.2 ± 0.03 | 1 |
| ≥7.9 | ≤6.0 | 0.2 ± 0.03 | 1 |
| ≥10.6 | ≤7.4 | 0.3 ± 0.03 | 1 |
| ≥12.5 | ≤8.8 | 0.3 ± 0.05 | 1 |
| ≥14.5 | ≤10.7 | 0.3 ± 0.05 | 1 |
| ≥19 | ≤12.8 | 0.4 ± 0.05 | 1 |
| ≥21 | ≤16.5 | 0.5 ± 0.05 | 1 |
| ≥24 | ≤18.5 | 0.5 ± 0.05 | 1 |
| ≥26 | ≤19.5 | 0.5 ± 0.05 | 1 |
| ≥30 | ≤21.5 | 0.5 ± 0.05 | 1 |
| ≥82 | ≤24 | 0.5 ± 0.05 | 1 |
| ≥91 | ≤64 | 0.5 ± 0.05 | 1 |
| ≥106 | ≤82 | 0.6 ± 0.05 | 1 |
| ≥118 | ≤96 | 0.6 ± 0.05 | 1 |
| ≥136 | ≤103 | 0.6 ± 0.05 | 1 |
| ≥156 | ≤125 | 0.6 ± 0.05 | 1 |
Expanded ID is the minimum inner diameter before shrinkage; recovered ID is the maximum inner diameter after shrinkage. Wall thickness is specified after recovery. Standard packaging length is 1 m.
The ≥82 mm expanded ID / ≤24 mm recovered ID entry is retained from the shared specification table and requires confirmation before ordering. Do not infer a universal shrink ratio from the listed dimensions.
The shared sizes do not establish identical material performance or recovery conditions for FEP and PFA. Confirm the PFA grade, recovery instructions, dimensional acceptance limits and application requirements with the quotation.
Additional PFA Size Options
The following recovered ID and wall thickness combinations are additional size examples. Specify the expanded ID, recovery requirements and required length when requesting a quotation.
| Recovered ID mm | Wall thickness mm |
| 1.6 | 0.15 |
| 3.6 | 0.1 |
| 8 | 0.3 |
| 16 | 0.25 |
| 30 | 0.35 |
| 130 | 0.5 |
| 180 | 0.55 |
| 200 | 0.6 |
Other dimensions, lengths and tolerances can be evaluated to suit drawings or samples. Stock availability and production lead time are confirmed at quotation.
Pressure and temperature limits depend on the exact PFA grade, construction, dimensions, installation and service conditions. Confirm the requirements for the selected product.
Shrink Ratio and Dimensional Selection
The most important sizing principle is to evaluate both the expanded and recovered dimensions. The expanded inside diameter must be large enough to pass over the component during installation, while the recovered inside diameter must provide the required fit after heating.
Expanded ID: larger than the maximum installation diameter, with suitable installation clearance; Recovered ID: compatible with the finished assembly diameter; Wall thickness: selected according to insulation, protection, mechanical and thermal requirements; Shrink ratio: confirm against the approved product datasheet rather than assuming one ratio for the whole PFA range; Length: account for assembly geometry, cut tolerance and axial movement during recovery; For irregular parts, provide a drawing or sample so the recovered fit can be evaluated.
High Purity and Process Cleanliness
For semiconductor, analytical, chemical and other controlled environments, PFA is often chosen because of its strong chemical resistance and fluoropolymer cleanliness characteristics. The heat-shrink format extends these benefits to protective sleeves around components and connections.
Cleanliness requirements should be specified separately. If the application requires controlled particulate, extractables, trace-metal, ionic or other contamination limits, the customer should identify the required standard and the supplier should confirm the exact material grade, processing controls and documentation.
Chemical Resistance
PFA provides broad resistance to many acids, bases, solvents and aggressive process chemicals. This is particularly valuable when the sleeve is exposed to the surrounding process environment or when it is used to protect a sensitive connection from chemical attack.
Chemical compatibility is application-specific. Temperature, concentration, exposure time, mechanical stress and permeation can change material performance. For critical service, compatibility should be confirmed for the actual chemical and operating conditions.
Electrical Insulation
PFA is an electrically insulating fluoropolymer and can be used as a protective sleeve for wires, terminals, splices and electrical components. The heat-shrink construction allows the material to conform around the assembly and provide a continuous insulating barrier.
Wire and cable insulation reinforcement; Terminal and connector protection; Splice and joint insulation; Protection of sensitive electrical components; High-temperature electrical isolation where conventional shrink materials are unsuitable.
Temperature Performance
PFA is selected for high-temperature environments, but heat-shrink installation temperature and service temperature are different parameters. The recovery process must be performed within the approved processing window, while the finished assembly must remain within the continuous and short-term temperature limits of the specific product.
Recovery temperature: confirm from the exact product specification; Continuous operating temperature: confirm from the exact PFA grade and construction; Short-term exposure: evaluate separately where thermal excursions occur; Mechanical load at elevated temperature: consider when the sleeve carries or restrains a component; Chemical exposure at elevated temperature: verify compatibility under the actual process conditions.
PFA Heat Shrink Tube vs PTFE Heat Shrink Tube
| Performance | PFA Heat Shrink Tube | PTFE Heat Shrink Tube |
| Chemical Resistance | Excellent | Excellent |
| High-Purity Applications | Strong fit for demanding process applications | Strong fit depending on grade and process requirements |
| Transparency / Visual Inspection | Good to excellent depending on grade and wall | Typically less transparent |
| Heat-Shrink Function | Excellent when supplied in shrinkable construction | Excellent when supplied in shrinkable construction |
| Electrical Insulation | Excellent | Excellent |
| High-Temperature Service | High; verify exact grade | Very high; verify exact grade |
| Typical Positioning | High-purity chemical/process protection and critical assemblies | High-temperature chemical, electrical and component protection |
The choice should be made from the actual temperature, purity, transparency, chemical and installation requirements rather than by material name alone.
PFA Heat Shrink Tube vs Standard PFA Tube
| Aspect | PFA Heat Shrink Tube | Standard PFA Tube |
| Primary Function | Protective sleeve / conformal covering | Fluid transfer, insulation or containment |
| Installation | Heated to recover around a component | Installed as a fixed tube |
| Recovered Fit | Designed to conform to assembly | Fixed manufactured dimensions |
| Typical Use | Connections, wires, terminals, component protection | Chemical and high-purity fluid handling |
| Key Selection Data | Expanded ID, recovered ID, wall, shrink ratio | ID, OD, wall, tolerance, length |
PFA Heat Shrink Tube vs Other Heat Shrink Materials
| Material | Main Advantage | When PFA Is Preferred |
| Polyolefin | Economical, general-purpose electrical protection | Higher chemical resistance and temperature performance are required |
| PVDF | Chemical resistance with useful mechanical properties | Higher fluoropolymer purity/temperature requirements justify PFA |
| Silicone | Flexible and soft | Chemical resistance and fluoropolymer performance are more important |
| PTFE | Excellent chemical and high-temperature performance | PFA is preferred where transparency, process cleanliness or specific PFA processing characteristics are important |
Certifications
PFA（REACH）Certification
PFA（Rohs）Certification
PFA-PFos Certification
PFA-FDA Certification
Typical Applications
Semiconductor manufacturing and process equipment; Chemical processing equipment; High-purity fluid and chemical handling assemblies; Electrical and electronic components; Wire, cable and terminal protection; Laboratory and analytical equipment; Sensors and instrumentation; Medical and life-science equipment where the exact grade and compliance are approved; Industrial equipment exposed to aggressive chemicals or elevated temperatures; OEM component encapsulation and connection protection.
Manufacturing and Quality Control
Dimensional consistency, surface quality and cleanliness depend on appropriate manufacturing controls. Relevant controls may include incoming material verification, extrusion-process control, dimensional and visual inspection, shrink-performance verification and lot traceability.
Raw material and grade verification; Dimensional measurement of expanded tubing; Wall-thickness and concentricity control where applicable; Visual inspection for contamination and surface defects; Shrink-performance verification according to the approved product specification; Electrical testing where required by the application; Lot identification and traceability; Packaging selected to protect the product from contamination during storage and shipment.
Custom PFA Heat Shrink Tube
Yozonetech can support application-specific PFA heat shrink tubing where standard dimensions do not match the assembly. Customization should be defined from the installation geometry and finished requirement.
Expanded inside diameter; Recovered inside diameter; Wall thickness; Shrink ratio; Length or continuous supply; Cut-piece tolerance; Dimensional tolerances; Packaging and labeling; OEM drawings and samples; Application-specific material and compliance documentation.
Recommended RFQ format: Expanded ID × Recovered ID × Wall Thickness × Length × Quantity. If possible, also provide the maximum installation OD, target recovered OD, operating temperature, chemical medium and a drawing or sample.
Why Choose Yozonetech
Focused experience in fluoropolymer tubing and engineered plastic products; Product portfolio covering PTFE, PFA, FEP, ETFE and related fluoropolymer solutions; Application-oriented material selection rather than commodity-only supply; Custom dimensions and OEM manufacturing support; Support for samples, technical evaluation and production requirements; Quality documentation and compliance support for applicable grades.
Certifications and Compliance
Compliance documentation should be linked to the exact material grade and finished product. Depending on the product and application, Yozonetech can support documentation such as FDA-related material documentation, RoHS, REACH, ISO 9001 and IATF 16949 documentation where applicable.
Certifications and documentation are product- and grade-specific. Request the applicable documentation for the exact product supplied.
FAQ
What is PFA heat shrink tube used for
It is used as a heat-recovered protective sleeve for components, connections, wires, terminals and assemblies exposed to chemicals, heat or demanding electrical environments.
Is PFA heat shrink tube transparent
Many PFA constructions offer natural translucency or transparency, but appearance depends on grade, wall thickness and processing.
What is the shrink ratio
The shrink ratio is construction-specific and should be confirmed from the approved product datasheet.
Can PFA heat shrink tube be used with aggressive chemicals
PFA has broad chemical resistance, but compatibility should be confirmed for the actual chemical, concentration, temperature and exposure time.
Can it be used for semiconductor applications
Yes, PFA is well suited to many semiconductor and high-purity applications, provided the exact grade, processing and cleanliness requirements are approved.
Is PFA heat shrink tube electrically insulating
Yes. PFA is an electrically insulating fluoropolymer and can be used for electrical protection when the dimensions and application are properly designed.
Can you supply custom sizes
Yes. Custom expanded/recovered dimensions, wall thickness, lengths and OEM requirements can be evaluated. The standard dimensional range matches our FEP heat shrink tubing; additional sizes can be reviewed.
Can PFA heat shrink tube replace PTFE heat shrink tube
Sometimes. The choice depends on temperature, transparency, purity, chemical environment and processing requirements.
What information is needed for a quotation
Provide expanded ID, recovered ID or target fit, wall thickness if known, length, quantity, operating conditions and preferably a drawing or sample.
Does the finished tube have a universal temperature rating
No. Service temperature depends on the exact PFA grade, construction, installation and exposure conditions.
