PFA Heat Shrink Tubing Sleeves for Semi-conductor Anti-UV and High Temperature Resistance
High Purity PFA Heat Shrink Tubing for Semiconductor, Medical & Advanced Industrial Protection
At Yozonetech, we manufacture high-performance PFA heat shrink tubing designed for applications where standard heat shrink materials cannot meet requirements for purity, temperature resistance, and chemical reliability.
PFA tubing (Perfluoroalkoxy) is one of the most advanced fluoropolymer materials, combining:
- The exceptional chemical resistance of PTFE
- The processing advantages of melt-processable fluoropolymers
- Excellent dimensional stability
- Superior purity characteristics
When heated, PFA heat shrink tubing conforms tightly around components, creating a protective barrier against:
- Aggressive chemicals
- High temperatures
- Moisture
- Electrical stress
- Environmental contamination
Unlike conventional polyolefin or PVC heat shrink tubing, PFA maintains long-term performance in highly demanding environments.
Yozonetech supplies heat shrink tubing waterproof for:
- Semiconductor equipment
- Medical devices
- Laboratory instruments
- Chemical processing systems
- Precision electronics
Why Choose PFA Heat Shrink Tubing?
1. Semiconductor-Grade Purity for Critical Applications
Modern semiconductor and precision manufacturing processes require extremely clean materials.
Any contamination from protective materials may affect:
- Wafer yield
- Equipment reliability
- Process stability
High-quality PFA heat shrink tubing provides:
✔ Low extractables
✔ Low ionic contamination
✔ Excellent chemical inertness
✔ Smooth non-contaminating surface
✔ Stable performance in ultra-clean environments
Typical semiconductor applications:
- Sensor protection
- Chemical-resistant wiring
- Equipment components
- High-purity assemblies
2. Outstanding Chemical Resistance
PFA offers excellent resistance to almost all industrial chemicals.
It withstands exposure to:
- Hydrofluoric acid (HF)
- Sulfuric acid (H₂SO₄)
- Nitric acid (HNO₃)
- Hydrogen peroxide (H₂O₂)
- Hydrochloric acid (HCl)
- Organic solvents
- Cleaning agents
Compared with conventional heat shrink materials, PFA provides:
- Lower chemical absorption
- Better long-term stability
- Reduced risk of cracking or degradation
3. Excellent High Temperature Performance
PFA heat shrink tubing provides reliable operation under extreme temperatures.
Continuous Working Temperature: -200°C to +260°C
Advantages:
- Maintains insulation performance
- Resists thermal aging
- Supports repeated thermal cycling
Suitable for:
- Semiconductor equipment
- High-temperature sensors
- Industrial heaters
- Aerospace systems
4. Precision Shrink Performance
PFA heat shrink tubing is designed for accurate and reliable component protection.
Advantages:
✔ Uniform shrinkage
✔ Stable dimensional recovery
✔ Smooth surface finish
✔ Reliable coverage of irregular shapes
Applications include:
- Precision connectors
- Sensors
- Small assemblies
- Electrical components
5. Excellent Electrical Insulation Properties
PFA provides outstanding electrical performance.
Key advantages:
- High dielectric strength
- Low dielectric constant
- Low moisture absorption
- Stable electrical properties at high temperatures
Applications:
- High-voltage wiring
- Semiconductor sensors
- Electronic assemblies
- Electrical protection systems
6. Low Friction and Non-Stick Surface
The smooth surface characteristics of PFA provide:
- Easy installation
- Reduced friction
- Better protection during movement
- Easy cleaning
Useful for:
- Precision components
- Moving assemblies
- Medical instruments
Key Specifications & Custom Capabilities
Material
Material:
100% Virgin PFA (Perfluoroalkoxy)Available grades:
- Industrial Grade PFA
- High Purity PFA
- Semiconductor Grade PFA
- Medical Grade PFA
Product Specifications
Item Specification Material PFA Shrink Ratio Customized Continuous Temperature -200°C to +260°C Shrink Temperature Approx. 300°C–340°C Color Natural / Custom Chemical Resistance Excellent Transparency Semi-transparent Available Size Range
Yozonetech provides:
- Small diameter PFA heat shrink tubing
- Large diameter PFA heat shrink tubing
- Thin wall PFA shrink tubing
- Custom sizes according to drawings
Customization:
✔ Inner diameter before shrinking
✔ Inner diameter after shrinking
✔ Wall thickness
✔ Length
✔ Color
✔ Packaging
Technical Datasheet (Typical Properties)
Property Typical Value Test Method Material Virgin PFA - Density 2.12–2.17 g/cm³ ASTM D792 Tensile Strength ≥25 MPa ASTM D638 Elongation at Break ≥250% ASTM D638 Continuous Temperature -200°C to +260°C - Dielectric Strength ≥20 kV/mm ASTM D149 Water Absorption <0.03% ASTM D570 Chemical Resistance Excellent - PFA Heat Shrink Tubing vs PTFE & FEP
Property PFA Heat Shrink PTFE Heat Shrink FEP Heat Shrink Purity Excellent Excellent Good Temperature Resistance +260°C +260°C +205°C Chemical Resistance Excellent Excellent Excellent Shrink Performance Excellent Good Excellent Transparency Semi-transparent Limited Excellent Semiconductor Applications Excellent Good Good Dimensional Stability Excellent Good Good When Should You Choose PFA Heat Shrink Tubing?
Choose PFA heat shrink tubing when your application requires:
✔ Semiconductor-grade cleanliness
✔ High temperature resistance
✔ Chemical protection
✔ Electrical insulation
✔ Long-term reliability
✔ Precision component protection
Typical Applications
1. Semiconductor Equipment
PFA heat shrink tubing is widely used for:
- Chemical-resistant wire protection
- Sensor insulation
- High-purity equipment components
- Process monitoring systems
Benefits:
✔ Low contamination risk
✔ Chemical stability
✔ Long service life
2. Medical Devices
Applications:
- Medical sensors
- Catheter components
- Electrical protection
- Laboratory instruments
Advantages:
- Chemical resistance
- Sterilization compatibility
- High reliability
3. Chemical Processing Systems
Applications:
- Chemical-resistant electrical protection
- Instrumentation systems
- Corrosive environments
4. Electronics & Precision Components
Applications:
- High-performance wire insulation
- Connector protection
- Sensor assemblies
5. Laboratory Equipment
Applications:
- Analytical instruments
- Chemical monitoring systems
- Precision testing equipment
Technical Specifications
- Physical & Chemical Properties of Fluororplastics
- SPECIFIC GRAVITY
- TECHNICAL NOTE for FLIUOROPOLYMER

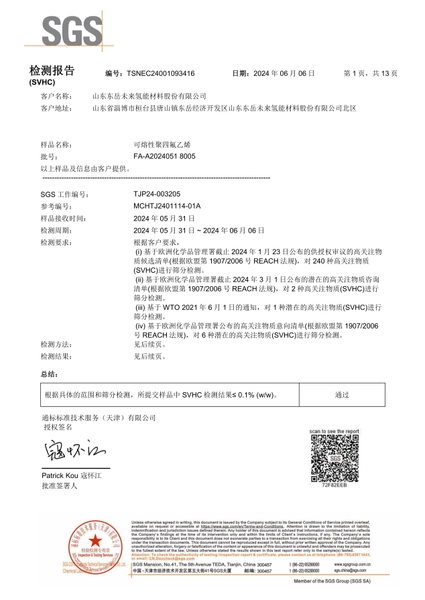

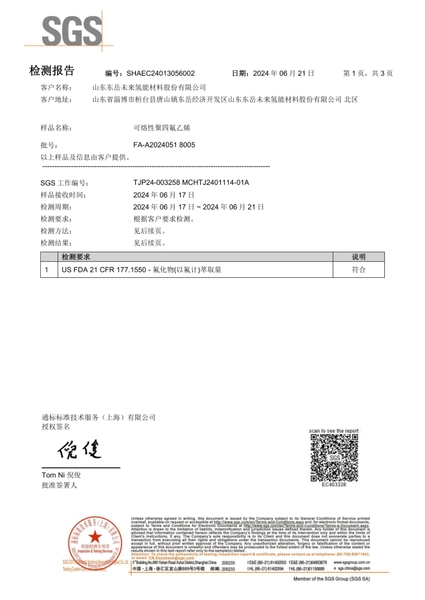

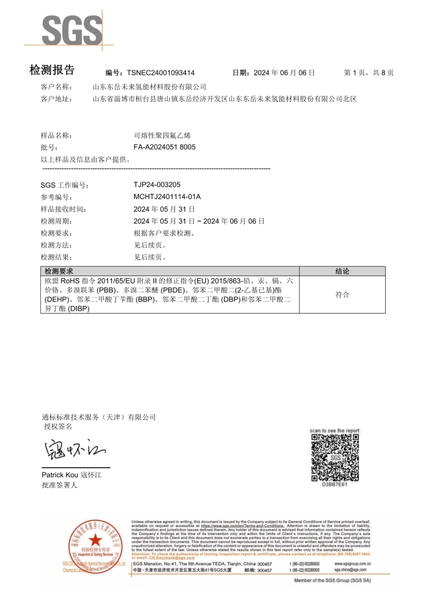

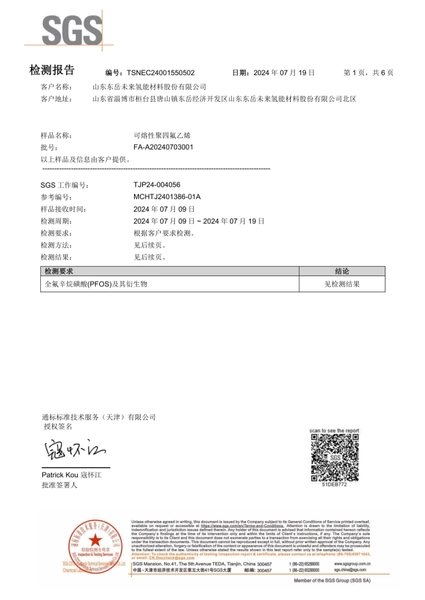

PFA Heat Shrink Tubing Certification
Manufacturing Advantages of Yozonetech
Advanced PFA Heat Shrink Technology
Our production focuses on:
✔ Stable expansion process
✔ Uniform wall thickness
✔ Reliable shrink recovery
✔ Smooth surface quality
✔ Consistent batch performance
Custom OEM Manufacturing Support
Yozonetech provides:
- Custom dimensions
- Drawing-based production
- Prototype samples
- Small batch testing
- Mass production
We support customers from initial design validation to final production.
Quality Control
Each production batch can be inspected for:
✔ Dimensional accuracy
✔ Shrink performance
✔ Surface appearance
✔ Material quality
✔ Packaging condition
Export Packaging Protection
Because PFA heat shrink tubing is a precision product, proper packaging is essential.
Yozonetech provides:
✔ Protective spool packaging
✔ Anti-deformation protection
✔ Clean packaging
✔ Export-standard packing
Ensuring products arrive ready for demanding applications.
Why Choose Yozonetech PFA Heat Shrink Tubing?
Yozonetech focuses on providing engineered fluoropolymer solutions, not standard low-cost heat shrink products.
Our advantages include:
✔ Professional fluoropolymer manufacturing experience
✔ High-purity material solutions
✔ Custom OEM capability
✔ Stable production quality
✔ Technical support
✔ Global export experience
Request PFA Heat Shrink Tubing Samples
Looking for high-purity PFA heat shrink tubing for your critical application?
Contact Yozonetech for:
- Technical consultation
- Custom dimensions
- Sample evaluation
- OEM production
Our engineering team can help you select the right fluoropolymer protection solution.
PFA Standard Heat Shrink Tubing sleeves (mm)
max ID min ID Wall thick at min Wall tolerance(+/- mm)
0.78
0,68
0,20
0.03～0.05
0.91
0,81
0,20
0.03～0.05
1.14
0,99
0,20
0.03～0.05
1.52
1,24
0,20
0.03～0.05
1.60
1.10
0.25
0.03～0.05
1.90
1,55
0,23
0.03～0.05
2.00 1.50 0.30 0.03～0.05
2.50 1.90 0.20 0.03～0.05
3.60 2.70
0.20 0.03～0.05
4.20 3.00
0.50 0.03～0.05
4.80 3.60
0.27 0.03～0.05
5.00
4,00
0,28
0.03～0.05
5.70
4,57
0,28
0.03～0.05
6.20
4.60
0.30
0.03～0.05
7.36
5,75
0,28
0.03～0.05
7.85
6,33
0,28
0.03～0.05
8.00 6.00 0.30 0.03～0.05
9.50 7.00 0.50 0.03～0.05
12.00 9.00 0.50 0.03～0.05
13.50 10.00 0.50 0.03～0.05
15.00 11.00 0.50 0.03～0.05
18.00 13.00 0.50 0.03～0.05
19.00 14.00 0.50 0.03～0.05
22.00 16.00 0.50 0.03～0.05
25.00 19.00 0.50 0.03～0.05
31.00 23.00 0.50 0.03～0.05
36.00 27.00 0.50 0.03～0.05
43.00 32.00 0.50 0.03～0.05
54.00 40.00 0.50 0.03～0.05
62.00 46.00 0.50 0.03～0.05
76.00 56.00 0.50 0.03～0.05
85.00 65.00 0.50 0.03～0.05
96.00 80.00 0.50 0.03～0.05
105.00 95.00 0.50
0.03～0.05
110.00 95.00 0.50
0.03～0.05
115.00 95.00 0.50 0.03～0.05
130.00 107.00 1.50 0.03～0.05
150.00 113.00 0.70 0.03～0.05
FEP light heat shrink tube (mm)
max ID min ID wall thick at min Wall tolerance(+/- mm)
1.80 1.30 0.15 0.03～0.05 2.60 2.00 0.20 0.03～0.05 3.40 2.60 0.10 0.03～0.05 5.00 3.50 0.10 0.03～0.05 5.10 3.80 0.25 0.03～0.05 7.40 5.50 0.25 0.03～0.05 10.20 7.50 0.25 0.03～0.05 12.80 9.50 0.25 0.03～0.05 14.00 11.00 0.10 0.03～0.05 14.50 12.00 0.10 0.03～0.05 18.00 13.00 0.25 0.03～0.05 22.00 16.00 0.25 0.03～0.05 25.00 19.00 0.25 0.03～0.05 31.00 23.00 0.25 0.03～0.05 36.00 27.00 0.25 0.03～0.05 43.00 32.00 0.25 0.03～0.05 53.00 39.00 0.25 0.03～0.05 62.00 46.00 0.25 0.03～0.05 -
PFA Heat Shrinking Tube
YOZONE is dedicated to providing high-quality PFA heat shrinking tubes that meet the highest industry standards. Our PFA tubes are engineered for exceptional chemical resistance, temperature stability, and flexibility, making them ideal for a wide range of applications, including chemical processing, semiconductor manufacturing, and medical devices. With precise sizing and various color options, YOZONE ensures that our PFA heat shrinking tubes not only deliver outstanding performance but also meet the specific needs of our customers. Trust YOZONE for reliable and durable solutions that enhance the safety and efficiency of your projects.
PFA (Perfluoroalkoxy) heat shrinking tube is a type of pfa tubing made from a fluoropolymer known for its excellent chemical resistance, high-temperature stability, and low friction properties. It is used in a variety of applications where reliable insulation and protection are required.
The size standards for PFA heat shrink tubing
PFA heat shrink tubing comes in various sizes, generally standardized by:
1.Inner Diameter (ID): Ranging from 1mm to 50mm or more, depending on application needs.
2.Wall Thickness: Common wall thicknesses range from 0.1mm to 0.5mm.
3.Length: Typically available in lengths of 1m, 5m, or 10m.
PFA heat shrink tubing Specification Standard Options
Specification Standard Options Inner Diameter (ID) 1mm - 50mm Wall Thickness 0.1mm - 0.5mm Length 1m, 5m, 10m PFA heat shrink tubing Colors
PFA heat shrink tubing is typically available in a variety of colors, including:
Transparent
Natural (Clear)
Black
Red
Green
Blue
Yellow
Does PFA heat shrink tubing have fire resistance properties?
PFA heat shrink tubing possesses excellent fire resistance properties. It is classified as a self-extinguishing material, meaning that when exposed to flame or high temperatures, it will not continue to burn once the ignition source is removed. This characteristic makes PFA particularly valuable in applications where fire safety is paramount, such as in aerospace, automotive, and industrial settings.
The ability of PFA to resist combustion significantly reduces the risk of fire hazards, especially in environments where heat and electrical components are present. Additionally, its low smoke emission during combustion further enhances safety, as it minimizes the potential for smoke inhalation in case of a fire. Consequently, PFA heat shrink tubing is an ideal choice for protecting wiring and components in critical systems where fire resistance is a vital requirement, providing peace of mind to engineers and safety professionals alike.
Is PFA heat shrink tubing compatible with other materials?
PFA heat shrink tubing is generally compatible with a wide range of materials, including metals, plastics, and rubber. However, it is essential to consider the specific application and chemical interactions with other materials to ensure optimal performance.
How is the antistatic performance of PFA heat shrink tubing?
PFA heat shrink tubing exhibits good antistatic performance, helping to prevent the buildup of static electricity. This characteristic is particularly important in environments where static discharge can damage sensitive electronic components or create fire hazards.
YOZONE is a leading custom heat shrink tubing manufacturer and supplier specializing in high-quality fluoropolymer solutions, including PFA heat shrink tubing. With a commitment to innovation and excellence, YOZONE leverages advanced technology and rigorous quality control processes to ensure that our products meet the highest industry standards. PFA tubing manufacturers extensive range of PFA tubing is designed for superior chemical resistance, temperature stability, and flexibility, making it ideal for demanding applications in sectors such as semiconductor manufacturing, chemical processing, and medical devices.
-
PFA 100% Virgin Transparent Extruded Tubing OEM Suppliers For Semiconductor
High Purity PFA Tubing for Semiconductor, Chemical & Advanced Industrial Applications
At Yozonetech, we manufacture high-quality PFA tubing (Perfluoroalkoxy tubing) designed for industries where contamination control, chemical resistance, and long-term reliability are critical.
PFA is one of the most advanced fluoropolymer materials available, combining the outstanding chemical resistance of PTFE with the manufacturing advantages of melt-processable thermoplastics.
This unique combination makes PFA tubing the preferred choice for:
- Semiconductor chemical delivery systems
- Ultra-pure fluid handling
- Wet process equipment
- Pharmaceutical systems
- Laboratory instruments
- High-performance industrial applications
Manufactured from 100% virgin PFA resin, our tubing provides excellent purity, dimensional stability, and long-term performance in aggressive operating environments.
Whether you require standard tubing sizes or customized OEM solutions, Yozonetech supports customers from prototype development to mass production.
Why Choose PFA Tubing?
1. Ultra-High Purity for Semiconductor Applications
In semiconductor manufacturing, even extremely small levels of contamination can affect wafer yield and process reliability.
PFA tubing is widely selected because of:
- Extremely low extractables
- Low ionic contamination
- Excellent chemical inertness
- Minimal particle generation
- Smooth internal surface
Compared with conventional plastic tubing, high-purity PFA provides a safer fluid path for sensitive chemical systems.
Typical applications include:
- Wafer cleaning systems
- Wet benches
- Chemical distribution systems
- CMP equipment
- High-purity process lines
2. Outstanding Chemical Resistance
PFA tube offers exceptional resistance to almost all aggressive chemicals.
It can handle:
- Hydrofluoric acid (HF)
- Sulfuric acid (H₂SO₄)
- Nitric acid (HNO₃)
- Hydrochloric acid (HCl)
- Hydrogen peroxide (H₂O₂)
- Organic solvents
- Cleaning chemicals
Unlike many engineering plastics, PFA does not easily:
- Swell
- Crack
- Degrade
- Lose mechanical performance
This makes it ideal for long-term chemical transfer applications.
3. Precision Extrusion & Excellent Dimensional Stability
For semiconductor and precision equipment, tubing dimensions directly affect:
- Fitting compatibility
- Flow accuracy
- Pressure stability
- Installation reliability
High-quality PFA tubing requires precise control of:
- Inner diameter
- Outer diameter
- Wall thickness
- Concentricity
Yozonetech uses controlled extrusion technology to maintain stable dimensions and consistent batch quality.
Available precision capabilities:
✔ Tight ID/OD tolerance
✔ Excellent concentricity
✔ Stable long-length production
✔ Custom extrusion according to drawings
4. Superior Surface Smoothness & Low Particle Generation
The internal surface quality of tubing plays an important role in high-purity systems.
A smoother inner surface helps:
- Reduce particle adhesion
- Improve chemical flushing
- Maintain stable flow
- Reduce contamination risks
PFA tubing provides an excellent fluid pathway for applications where cleanliness is critical.
5. Excellent Temperature Resistance
PFA maintains excellent mechanical and chemical performance across a wide temperature range.
Continuous Working Temperature: -200°C to +260°C
This makes PFA suitable for:
- High-temperature chemical processing
- Semiconductor cleaning equipment
- Laboratory heating systems
- Industrial automation environments
Key Specifications & Custom Capabilities
Material
Material:
100% Virgin PFA (Perfluoroalkoxy)Available grades:
- Industrial Grade PFA
- High Purity PFA
- Semiconductor Grade PFA
- Medical Grade PFA
Dimensional Range
Yozonetech supplies:
Standard PFA Tube
- Inner Diameter: 0.6 mm – 260 mm
- Wall Thickness: Customized
- Length: Coil or straight cut
Custom Manufacturing
Available options:
✔ Thin wall PFA tubing
✔ Heavy wall PFA tubing
✔ Small diameter PFA capillary tubing
✔ Custom colors
✔ Custom lengths
✔ Drawing-based production
Technical Datasheet (Typical Properties)
Property Typical Value Test Method Material Virgin PFA - Density 2.12 – 2.17 g/cm³ ASTM D792 Tensile Strength ≥25 MPa ASTM D638 Elongation at Break ≥250% ASTM D638 Continuous Temperature -200°C to +260°C - Melting Point Approx. 305°C ASTM D3418 Dielectric Strength ≥20 kV/mm ASTM D149 Water Absorption <0.03% ASTM D570 Chemical Resistance Excellent - PFA Tube vs PTFE Tube vs FEP Tube
Property PFA PTFE FEP Chemical Resistance Excellent Excellent Excellent Purity Excellent Excellent Good Temperature Range +260°C +260°C +205°C Transparency Semi-transparent Opaque Transparent Flexibility Excellent Medium Excellent Extrusion Precision Excellent Medium Good Welding Capability Excellent Poor Excellent Semiconductor Use Excellent Good Good When Should You Choose PFA Tubing?
Choose PFA when your application requires:
✔ Semiconductor-grade purity
✔ Ultra-clean chemical transfer
✔ Tight dimensional tolerance
✔ High temperature resistance
✔ Long-term chemical stability
✔ Reliable OEM production
Typical Applications
Semiconductor Manufacturing
PFA tubing is widely used in:
- Wet process systems
- Chemical distribution systems
- Wafer cleaning equipment
- CMP systems
- Acid delivery lines
- Ultra-pure chemical handling
Chemical Processing
Applications:
- Corrosive chemical transfer
- Acid and solvent lines
- Chemical dosing systems
- Laboratory chemical equipment
Medical & Pharmaceutical
Applications:
- Fluid handling systems
- Analytical instruments
- Diagnostic equipment
- High purity laboratory systems
Industrial Automation
Applications:
- Precision fluid control
- Sensor protection
- High-temperature automation systems
- Special chemical environments
Manufacturing Advantages of Yozonetech
Advanced PFA Extrusion Capability
Our manufacturing focuses on:
✔ Stable extrusion process
✔ Tight tolerance control
✔ Consistent inner diameter
✔ High concentricity
✔ Reliable batch quality
Engineering Support & OEM Capability
We support customers with:
- Material selection assistance
- Custom tubing design
- Prototype samples
- OEM production
- Technical documentation
Our team helps customers choose the right PFA tubing based on:
- Chemical compatibility
- Temperature requirements
- Pressure conditions
- Installation environment
Quality Control & Traceability
Each production batch can be managed with:
✔ Raw material verification
✔ Dimensional inspection
✔ Appearance inspection
✔ Batch identification
✔ Export documentation
Export Packaging for Global Customers
PFA tubing is a precision product and requires proper protection during transportation.
Yozonetech provides:
✔ Protective spool packaging
✔ Anti-kinking protection
✔ Clean packaging
✔ Export-standard packing solutions
This helps ensure tubing arrives in excellent condition for immediate installation.
Why Global Customers Choose Yozonetech
Yozonetech pfa tubing manufacturers focuses on providing reliable fluoropolymer solutions rather than simple commodity supply.
Our advantages include:
✔ Professional fluoropolymer extrusion experience
✔ Custom manufacturing capability
✔ Semiconductor and industrial application knowledge
✔ Stable quality control
✔ Fast sample support
✔ Global export experience
Request a PFA Tubing Quote
Looking for high-purity PFA tubing for semiconductor, chemical, or precision applications?
Contact Yozonetech extruded tube for:
- Custom dimensions
- Technical consultation
- Material recommendation
- Prototype samples
- OEM production
Our engineering team can help you develop the right fluoropolymer tubing solution.
Technical Specifications
- Physical & Chemical Properties of Fluororplastics
- SPECIFIC GRAVITY
- TECHNICAL NOTE for FLIUOROPOLYMER
FEA Tubing Certification
