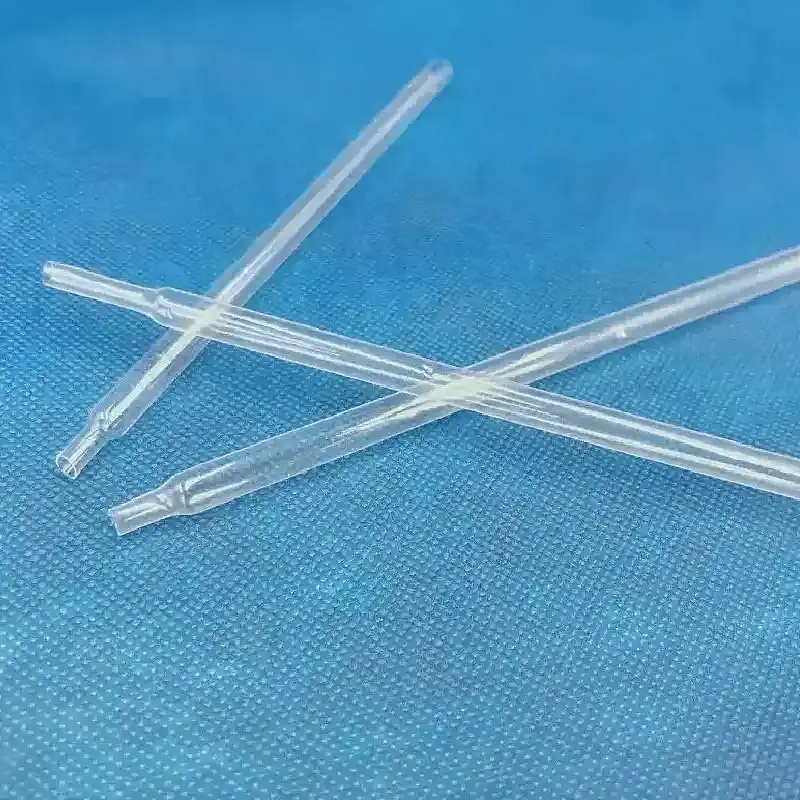

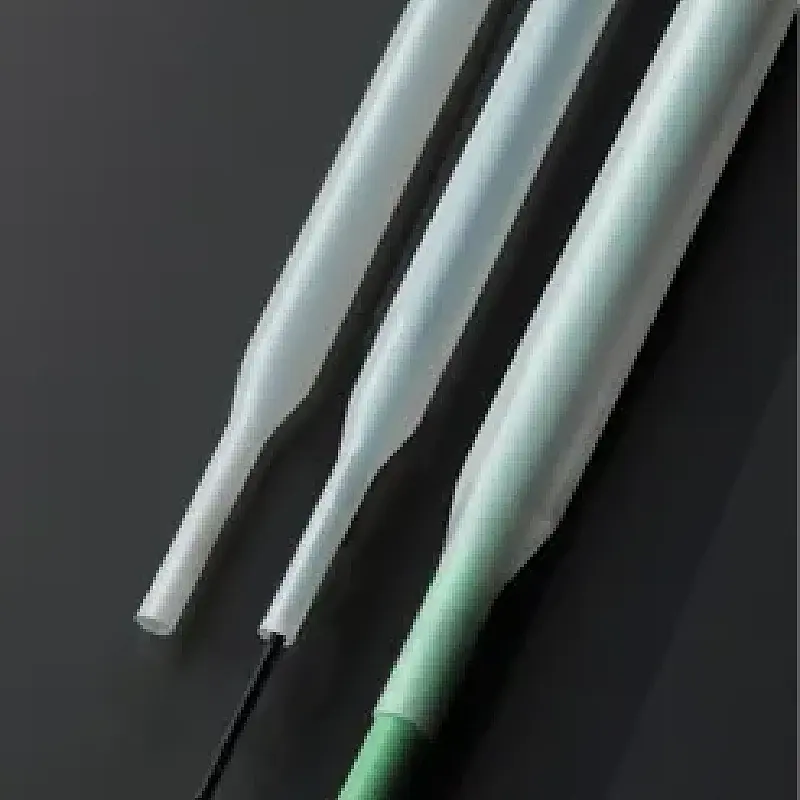

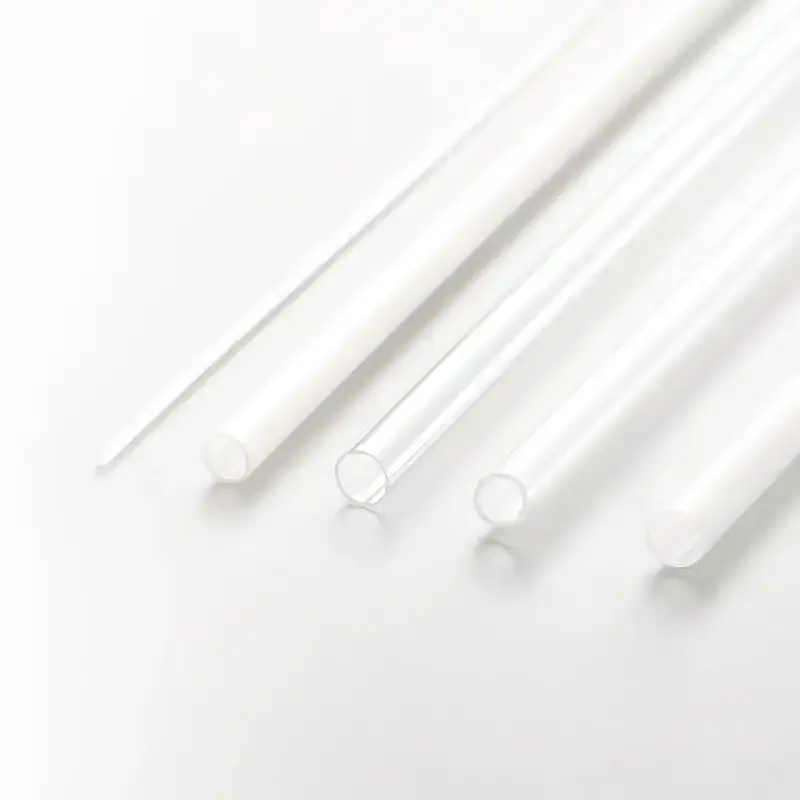

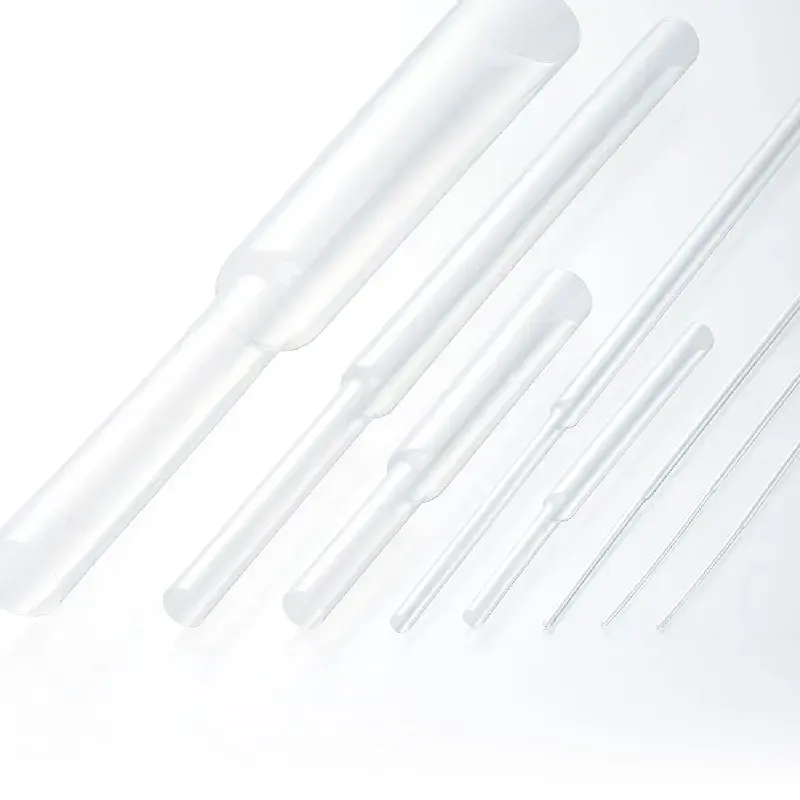

FEP Peelable Heat Shrink Medical Grade Tube with Bio-Compatibility Certification
Medical heat shrink tubing Performance and usage:
Polyper fluoroethylene propylene FEP medical peelable heat shrink tubing has excellent electrical insulation properties and high temperature resistance, and is used in
Components that need to be exposed to high temperature environments and have high insulation requirements during the process. Has excellent resistance to liquids and
Corrosive, physiologically inert, can be in direct contact with human skin, mainly used in surgical medical instruments and medical components and equipment.
Medical heat shrink tubing Features:
Shrink ratio: 1.3:1
Working temperature: -55℃~200℃
Initial shrinkage temperature: ≥150℃
good transparency
Excellent electrical insulation properties and physiological inertness
Meets ethylene oxide (ETO), gamma sterilization
Heat shrink tubing manufacturers Compliant with ISO 10993-1
Custom heat shrink tubing Environmental standards: no heavy metals, ROHS compliant
Standard color: transparent
Medical heat shrink tubing Specification
No. |
Size |
ID before shrinking(mm) |
ID after shrinking(mm) |
Wall after shrinking(mm) |
1 |
XMC-FEP φ1.2mm |
>1.20 |
<0.70 |
0.20±0.05 |
2 |
XMC-FEP φ2.5mm |
>2.50 |
<1.80 |
0.20±0.05 |
3 |
XMC-FEP φ2.8mm |
>2.80 |
<2.10 |
0.25±0.05 |
4 |
XMC-FEP φ3.1mm |
>3.10 |
<2.20 |
0.25±0.05 |
5 |
XMC-FEP φ4.7mm |
>4.70 |
<2.90 |
0.25±0.05 |
Medical heat shrink tubing Technical indicators
Item |
Test method |
Typical data |
Tensile strength(Mpa) |
ASTM D 638 |
≥13.8Mpa |
Elongation at break |
ASTM D 638 |
≥300% |
Axial shrinkage change rate |
ASTM D 2671 |
±10% |
Dielectric strength (kV/mm) |
ASTM D 2671 |
≥19.70 |
Insulation withstand voltage |
ASTM D 149 |
4000V, no breakdown in 60s |
Volume resistivity |
UL 224 |
≥101*Ω.cm |
Low temperature flexibility |
AMS-DTL-23053 |
65℃/4 hours, no cracks |
Copper corrosion |
AMS-DTL-23053 |
No dents or blackening |
clarity stability |
AMS-DTL-23053 |
pass |
Flame retardancy |
ASTM D 2671C法 |
Self-extinguishing within 15s |
