PVC Reinforced Hose

Product Overview

PVC Reinforced Hose is a flexible pressure hose designed for the reliable transfer of water, air, light chemicals, and other compatible fluids in industrial, agricultural, and general-purpose applications. Its construction combines a flexible PVC inner tube with a high-strength reinforcement layer, providing a practical balance between flexibility, pressure resistance, and handling convenience.

Compared with ordinary PVC tubing, the reinforced structure helps the hose maintain its shape under working pressure while reducing the risk of expansion and deformation. The smooth inner surface supports efficient fluid flow and helps minimize material buildup. The hose can be supplied in different diameters, wall thicknesses, colors, and lengths to meet different operating requirements. Depending on the application, reinforcement can be selected according to the required pressure level and flexibility.

Key Features

• Reinforced pressure structure— Provides higher pressure resistance than standard non-reinforced PVC tubing.
• Flexible and easy to handle— Suitable for routing around equipment and confined installation spaces.
• Smooth inner wall— Supports efficient flow and reduces resistance during fluid transfer.
• Good abrasion resistance— Suitable for repeated handling and general industrial use.
• Wide application range— Suitable for water, air, irrigation, machinery, and compatible fluids.
• Customizable construction— Available in different sizes, reinforcement structures, colors, and lengths.
• Convenient storage and installation— Flexible construction allows practical coiling, cutting, and connection.

Technical Specifications

Actual pressure, temperature, and dimensional specifications depend on hose size, reinforcement density, and application conditions.

Standard Sizes

Materials & Construction

The hose is manufactured primarily from flexible PVC, selected for its combination of flexibility, abrasion resistance, weatherability, and economical processing. A reinforced layer is incorporated into the hose wall to improve dimensional stability and pressure performance during operation.

The inner PVC layer forms a smooth flow channel, helping fluids pass through the hose with relatively low flow resistance. The reinforcement layer provides additional mechanical strength and helps limit radial expansion when internal pressure increases. An outer PVC layer protects the reinforcement from abrasion, moisture, and normal handling conditions.

Different reinforcement densities can be selected according to the intended working pressure and flexibility requirements. For applications requiring easier handling, a lighter reinforcement structure can be used, while higher-pressure applications can utilize a denser reinforcement layer. This construction allows the same basic hose design to be adapted to different industrial and commercial requirements.

Applications

PVC Reinforced Hose is widely used where flexible pressure transfer is required without the weight and rigidity of conventional rigid piping. It is commonly used for water delivery, agricultural irrigation, air transfer, equipment connections, machinery, cleaning systems, and general industrial fluid handling.

In agricultural applications, the hose can be used for irrigation and water distribution where frequent movement and installation flexibility are important. In workshops and factories, it can connect pumps, equipment, tanks, and processing systems. Its flexible construction is also useful for temporary or semi-permanent connections where rigid pipes would be inconvenient.

The hose can handle many commonly used fluids, but compatibility should be confirmed before use with oils, aggressive chemicals, high-temperature media, or other specialized fluids. For demanding applications, Yozonetech can recommend an appropriate PVC formulation and reinforcement structure based on the actual working conditions.

Manufacturing & Quality Control

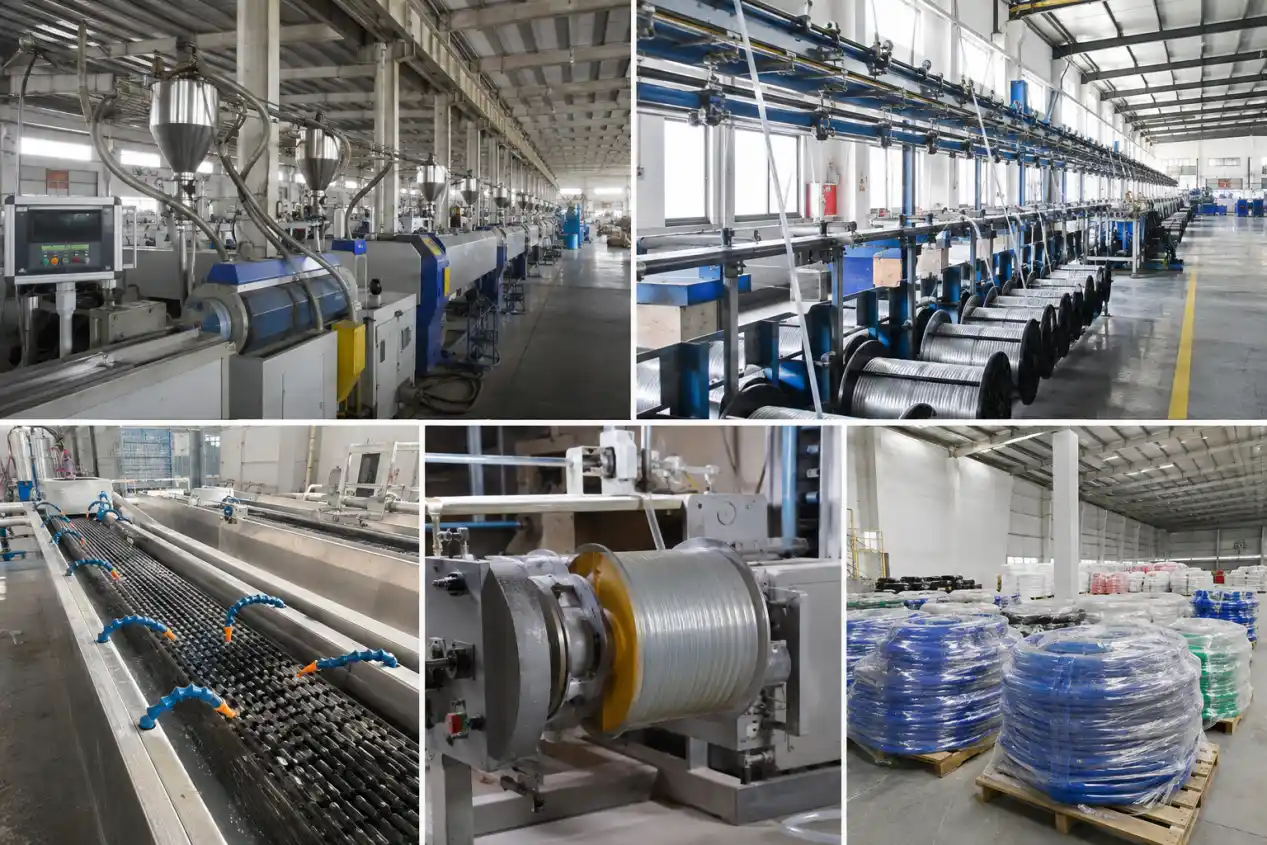

Yozonetech manufactures PVC reinforced hose through controlled extrusion and reinforcement processes designed to maintain consistent dimensions and bonding between the hose layers. PVC raw materials are prepared according to the required formulation before being processed through precision extrusion equipment.

During production, the inner PVC layer is formed first, followed by the reinforcement layer and outer PVC covering. Process parameters such as extrusion temperature, material feeding, line speed, and cooling conditions are controlled to maintain a stable hose structure. The reinforcement is positioned evenly around the hose to reduce variations in wall thickness and pressure performance.

After extrusion, the hose is cooled, measured, cut to the specified length, and visually inspected. Quality control focuses on key characteristics including inner and outer diameter, wall thickness, surface appearance, flexibility, reinforcement position, and dimensional consistency. Pressure testing can also be performed according to customer requirements.

Before shipment, finished hoses are checked against production specifications and packaging requirements. Customized labels, markings, rolls, coils, and packaging configurations are available for different markets and distribution channels.

Customization / OEM & ODM

Yozonetech provides OEM and ODM solutions for customers requiring PVC reinforced hose with application-specific dimensions or construction.

The customization process normally begins with confirmation of the application, medium, working pressure, temperature, required diameter, and hose length. Based on these conditions, we recommend a suitable PVC formulation and reinforcement structure.

Customers can customize:

• Inner and outer diameter
• Wall thickness
• Reinforcement density
• Hose length
• Color and appearance
• Surface marking and printing
• Fittings and connection methods
• Roll, coil, or straight-length packaging
• Private labels and customized packaging

For regular production, samples or technical drawings can be reviewed before mass production. Our engineering and production teams can then optimize the construction according to the customer's performance requirements, helping achieve a balance between pressure resistance, flexibility, service life, and production cost.

FAQ

1. What is the difference between PVC reinforced hose and ordinary PVC hose?

PVC reinforced hose contains an additional reinforcement layer inside the wall. This provides better dimensional stability and pressure resistance while maintaining much of the flexibility of PVC tubing.

2. Can the hose be used for water and air?

Yes. PVC reinforced hose is commonly used for water, irrigation, air, and other compatible fluids. The appropriate specification should be selected according to pressure, temperature, and medium.

3. Can you manufacture different sizes and colors?

Yes. Inner diameter, outer diameter, wall thickness, length, color, reinforcement density, printing, and packaging can be customized according to the order requirements.

4. Can you provide samples before bulk production?

Yes. Samples can be produced or supplied for dimensional, material, flexibility, and application evaluation before regular production.

5. Is PVC reinforced hose suitable for oil or chemicals?

This depends on the specific medium and concentration. For oil, fuel, solvents, or aggressive chemicals, the material compatibility should be evaluated before production. Yozonetech can recommend a more suitable hose construction when standard PVC is not sufficient.
