PVC Spiral Steel Wire Hose

Product Overview

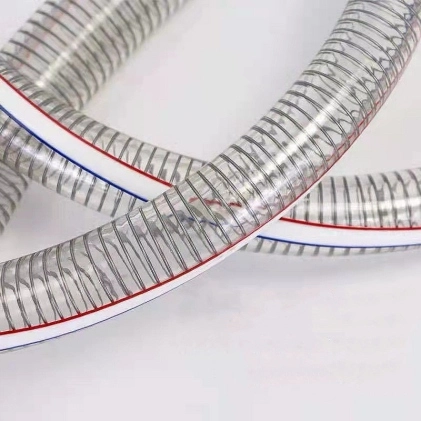

PVC Spiral Steel Wire Hose is a flexible suction and delivery hose designed for applications requiring both mechanical flexibility and resistance to vacuum-induced collapse. A continuous steel wire helix is embedded within the PVC wall, creating a reinforced structure capable of maintaining the hose bore during suction, bending, and fluid transfer.

The spiral construction makes this hose particularly suitable for applications where conventional soft PVC tubing would deform under negative pressure or repeated handling. Depending on the formulation and dimensions, it can be used for water, air, light chemicals, slurry, powders, granular materials, and other compatible media. Transparent and translucent versions allow operators to visually monitor material movement through the hose.

The combination of a flexible PVC body and steel-wire helix provides a practical balance between weight, bending capability, structural stability, and service life. Different wire diameters, spiral pitches, wall thicknesses, and PVC formulations can be selected according to pressure, vacuum, abrasion, and flexibility requirements.

Caraterísticas principais

• Continuous steel-wire helix— Provides circumferential support and helps preserve the internal passage during suction.
• Suitable for positive and negative pressure service— Construction can be configured for delivery, suction, or combined operating conditions.
• Controlled bending behavior— Spiral reinforcement allows the hose to flex without behaving like rigid piping.
• High visual transparency options— Clear PVC versions allow inspection of fluid and particulate movement.
• Good resistance to abrasion and weather exposure— Suitable for general industrial and outdoor handling conditions.
• Reduced risk of hose collapse— Reinforcement supports the wall when internal pressure falls below atmospheric pressure.
• Variable reinforcement geometry— Steel-wire diameter and spiral pitch can be engineered for different mechanical requirements.

Technical Specifications

Pressure and vacuum ratings are construction-specific. The final specification should be established according to hose diameter, steel-wire configuration, temperature, medium, and actual operating conditions.

Standard sizes

Materials & Construction

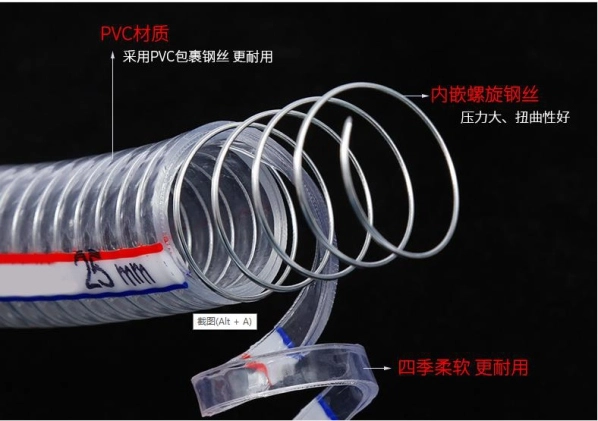

The hose consists of a flexible PVC matrix surrounding a continuous spiral steel wire. Unlike textile-reinforced pressure hose, where reinforcement is primarily intended to withstand internal pressure, the steel helix in this construction provides radial support along the entire length of the hose. This makes the design particularly effective for suction and vacuum applications.

The steel wire is formed into a controlled spiral and integrated into the PVC wall during extrusion. Its pitch and diameter influence several performance characteristics, including bending radius, crush resistance, vacuum stability, weight, and overall flexibility.

The inner PVC surface provides the direct contact path for the conveyed material. A smooth bore helps maintain consistent flow and reduces locations where particles can accumulate. The outer PVC layer protects the embedded steel wire against normal environmental exposure and mechanical handling.

PVC formulations can be modified according to the intended service. Softer compounds can provide easier bending, while a more rigid formulation and stronger wire structure can improve resistance to deformation. For abrasive media, wall thickness and material formulation can be adjusted to extend service life.

Aplicações

PVC Spiral Steel Wire Hose is widely used in suction, discharge, and material-transfer systems where flexibility and structural stability are required simultaneously. Typical applications include agricultural irrigation, water suction, pump connections, industrial vacuum systems, slurry transfer, liquid handling, and pneumatic or mechanical transport of selected particulate materials.

In agricultural equipment, the hose can be used between pumps, tanks, irrigation systems, and water sources. Its flexible construction allows the suction line to follow equipment movement and uneven installation paths.

Industrial applications include transferring water, wastewater, light chemicals, slurry, powders, pellets, and other compatible materials. Transparent versions are especially useful when operators need to observe the flow condition or identify blockages without dismantling the system.

The steel-wire structure also makes the hose suitable for applications where a flexible connection must withstand external bending and negative pressure. For highly abrasive solids, concentrated chemicals, elevated temperatures, or demanding continuous vacuum service, the hose construction should be selected according to the actual operating parameters.

Manufacturing & Quality Control

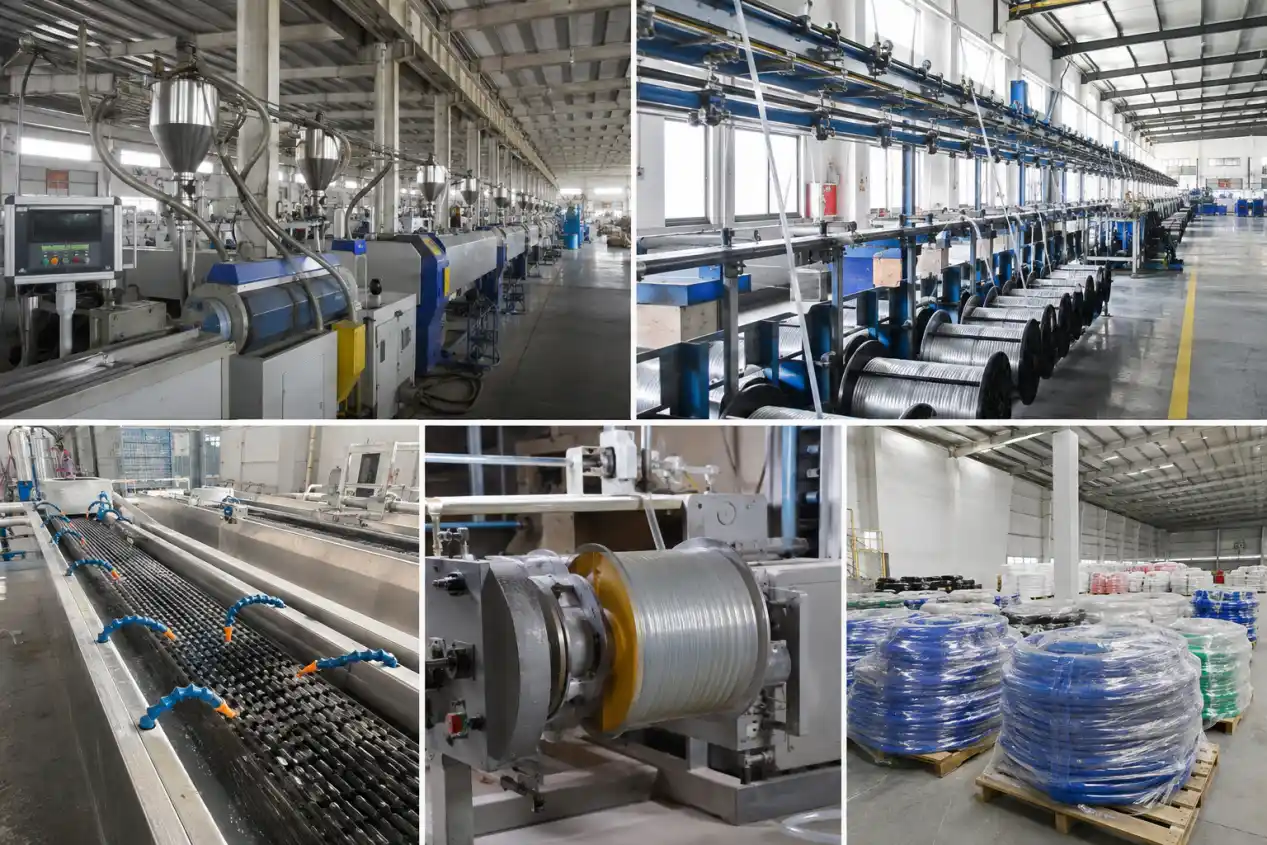

Manufacturing PVC spiral steel wire hose requires accurate coordination between PVC extrusion and steel-wire forming. The PVC compound is prepared according to the required flexibility, hardness, transparency, and environmental performance. Steel wire is formed into a controlled helical geometry before being integrated into the hose wall.

During production, extrusion temperature, material flow, line speed, wire tension, spiral pitch, and embedding position are controlled continuously. Correct wire placement is critical: insufficient PVC coverage can expose the reinforcement, while excessive displacement can create variations in wall thickness and affect bending characteristics.

After the hose is formed, controlled cooling stabilizes the PVC profile and helps maintain dimensional accuracy. Finished hose is inspected for inner diameter, outer diameter, wall thickness, spiral uniformity, surface condition, and overall appearance.

For applications involving suction or pressure, additional performance checks can be conducted according to the agreed specification. These may include vacuum-resistance testing, pressure testing, leakage inspection, bending evaluation, and dimensional recovery after deformation.

Particular attention is paid to the transition between the steel-wire-reinforced body and the hose ends, where cutting and connection can influence installation quality. Finished products are coiled and packaged in a way that minimizes permanent deformation during transportation and storage.

For OEM production, inspection criteria can be established in advance, including dimensional tolerances, wire specifications, vacuum requirements, pressure requirements, and appearance standards.

Customization / OEM & ODM

PVC spiral steel wire hose is highly dependent on the relationship between hose diameter, wall thickness, steel-wire geometry, and operating conditions. Yozonetech provides OEM and ODM development for applications requiring a specific balance of flexibility, vacuum resistance, pressure capability, and wear performance.

The process starts with the customer’s medium, working pressure, vacuum level, temperature, flow characteristics, hose diameter, bending radius, and connection method. These parameters are used to determine the appropriate PVC formulation and steel-wire structure.

Customization options include:

• Inner and outer diameter
• PVC hardness and formulation
• Espessura da parede
• Steel-wire diameter
• Spiral pitch
• Wire material and surface treatment
• Transparency and color
• Hose length and coil configuration
• Smooth or customized surface
• Clamps, cuffs, flanges, and other connections
• Surface printing and identification
• OEM packaging and private labeling

Customers can provide an existing sample, drawing, equipment interface, or performance specification. Prototype production allows the hose to be evaluated under actual suction, pressure, bending, and connection conditions before the final construction is approved for series production.

FAQ

1. What is the main purpose of the steel wire inside the hose?

The spiral steel wire acts as a continuous structural support. It helps prevent the PVC wall from collapsing when the hose is subjected to negative pressure and also improves resistance to external deformation.

2. Is PVC spiral steel wire hose suitable for suction applications?

Yes. This is one of its primary applications. The steel-wire helix helps maintain the internal passage under vacuum. However, the appropriate wire diameter, pitch, and wall thickness must be selected according to the required vacuum level.

3. Can this hose be used for both suction and discharge?

Yes, depending on its construction. The required working pressure and vacuum rating should be considered together when selecting the hose. A hose optimized for suction should not automatically be assumed to have a high positive-pressure rating.

4. What is the advantage of a transparent version?

A transparent or translucent hose allows operators to observe the conveyed material. This can help identify flow interruptions, air pockets, blockages, or contamination without opening the system.

5. Can the steel wire and spiral pitch be customized?

Yes. Wire diameter and spiral pitch can be adjusted according to the required flexibility, crush resistance, vacuum performance, and mechanical strength. Custom construction is particularly useful for OEM equipment and specialized suction systems.
