Silicone Medical Grade USP Class VI Tubing Manufacturer for Injector

Medical Silicone Tubing Product Description：

1.SILCON medical silicone tubing adopts a good production process and meets the sixth category of biocompatibility requirements of the United States Pharmacopoeia (USP). The medical silicone tube is very smooth and will not leave any magazines, and will not breed bacteria. The extrusion plastic tube is soft and bendable, and because it does not contain leaching plasticizer, it will not cause fluid contamination or hardening of the tube.

2.We recommend choosing rubber hoses fittings carefully, as sharp barbed fittings or unlined metal clamps may tear the pipe wall.

3.If exposed to high temperature steam, disinfectant or high pressure environment for a long time, silica gel will eventually become loose and sticky. We should replace him at this time to prevent engineering accidents.

4.Peroxide cured silicon medical tubes are provided in personal, non-sterile, heat-sealed plastic bags and should be sterilized before use.

5.SILCONE MEDICAL TUBE is not recommended to be implanted in the human body, nor is it recommended to be used in a working environment with continuous high temperature steam.

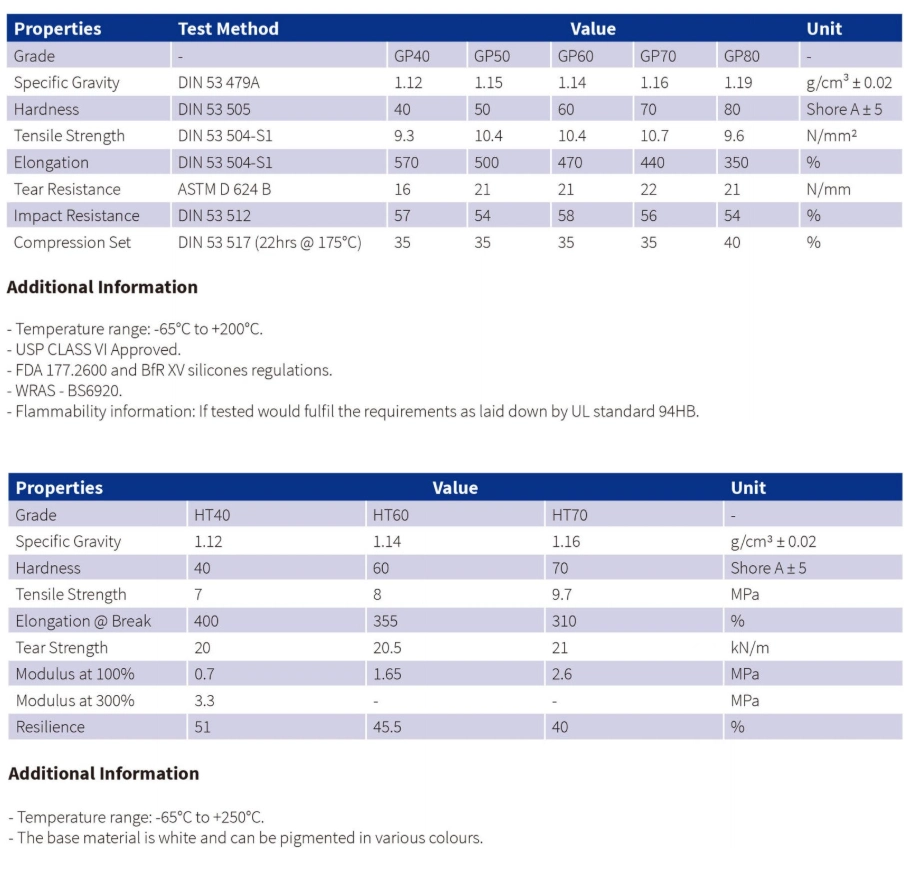

Medical Silicone Tubing Physical Properties:

Single-Lumen Extrusion

Dimensions

OD 0.030” (0.762 mm) min; 0.625” (15.875mm) max

ID 0.010” (0.254 mm) min; 0.585” (14.859 mm) max

Tolerances may vary depending on durometer, material, and tube size

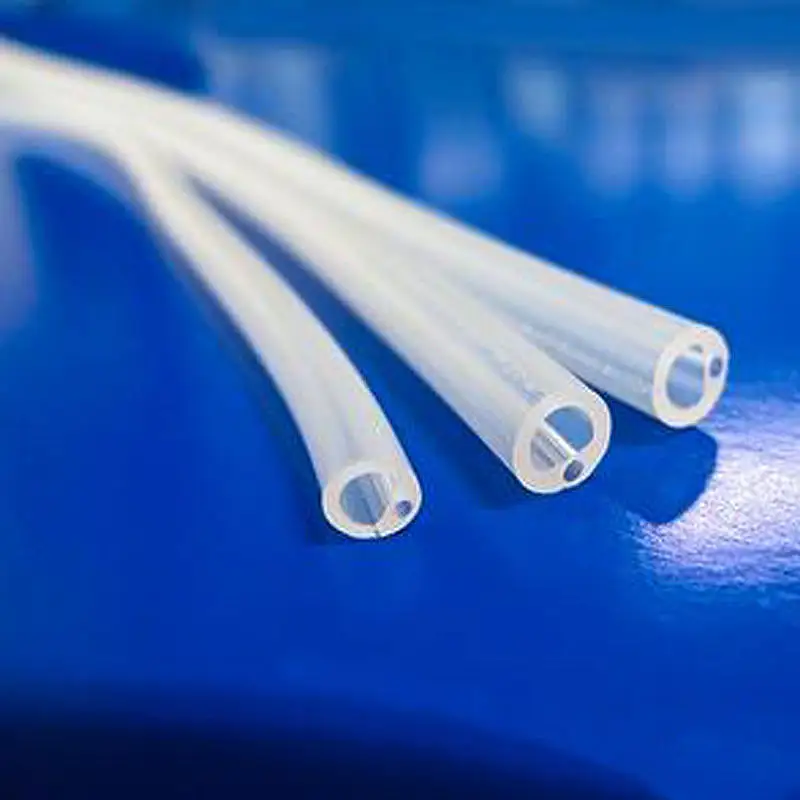

Multilumen Extrusion

Dimensions

Up to 6 lumens

Tolerances may vary depending on durometer, material, and tube size

Silicone Medical Tubing Capabilities

Available in many material grades

Durometers range from 25A to 80A

ISO 10993 & USP Class VI-compliant silicone rubber elastomers

Platinum and peroxide curing

Translucent, pigmented, or radiopaque striping options

Colorant options

Reinforced extruded plastic tubes for high-pressure applications and kink resistance

Cut to length

Pad printing

Overmolding

Hole punching, bonding, tipping, grinding, and other secondary operations

Medical Silicone Tubing Product Specification：

Place of Origin: China

Brand Name: YOZONE

Model Number: tsmcay-30

Material brand: Daikin chemical, DuPont. Dongyue & Chenguang (Domestic)

Specification: Customized

Length: Customized

Thickness: customized

Shape: Round

Color: Transparent, customized

Working temperature: -50°C~230°C(Nature color),

Special Material: -60°C~280°C(Red color)

Shore: 40A to 75A

Tolerance: ±0.05 mm

Certification: UL, CE, FDA, RoHS, REACH.

Standard: ISO9001:2008.

Test: SGS passed

Sample: Free

Payment: T/T

Service Life: Depends on environment, please kindly consult our engineers.

Application: Medical usage

Medical Silicone Tubing Supply Ability:

100000 Pcs per Month Medical Silicone Tube

Medical Silicone Tubing Lead Time:

Medical Silicone Tubing Packaging & Delivery:

Medical Silicone Tube into Carton and Wooden Pallet
