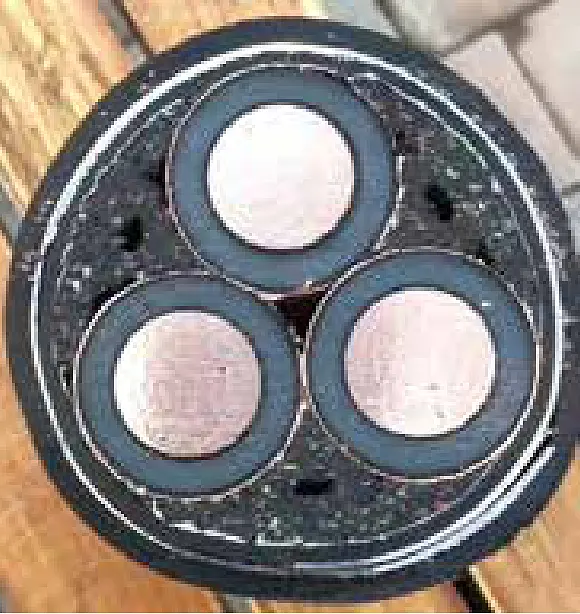

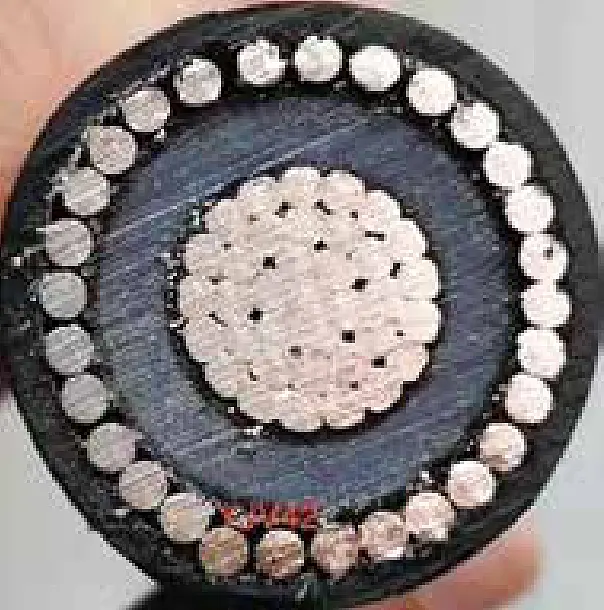

XLPE Insulated Electrical Cable
1. Usage
The cable is used in electric transmission and distribution system operation at rated voltage of 0. 6/1, 1. 8/3, 3. 6/6, 6/6, 6/10,8. 7/10,8.7/15,12/20,21/35,26/35KV
2. Model and name
| Mold | name |
|---|---|
| YJV YJLV |
Cu or AI conductor. XLPE insulated. PVC sheathed electric cable |
| YJV22 YJV22 |
Cu or AI conductor, XLPE insulated steel tape armored PVC sheathed electric cable |
| YJV32.42 YJV32.42 |
Cu or AI conductor, XLPE insulated steel tape armored PVC sheathed electric cable |
3. Techno logy property
1. Bending radius:
Bending radius of single core cable is 20 (d+D) ±5%
Bending radius of multi-core cable is 15 (d+D) ±5%
D=Actual outer diameter of cable sample (mm )
d=Actua1 diameter of the conductor (mm )
2. Installation temperature:
It should be heated where ambient temperature is below 0'C
3. Lever difference of cable installation:
Not restricted by the difference of level along the route.
