PVDF Heat Shrink Tube OEM Manufacturer

PVDF Heat Shrink Tube OEM Manufacturer

Short Description:

Place of Origin:China
Brand Name:Yozonetech

Product Detail

PVDF heat shrink tubing Product Specifications：

Place of Origin: China

Brand Name: Yozonetech

Type: Insulator

Material:PVDF

Application:High Temperature

Rated Voltage:1kv

Tensile Strength:30MPA min

Product name:PVDF heat shrink tubing Kynar heat shrink tubes

Tensile strength:30 Mpa min

Operating temperature:-55 ~+150 °C

Elongation at break:150% min

Elongation at break after aging:100% min

Flammability:Flamable

shrink ratio:2:1

Supply Ability:10000 Meter/Meters per Day

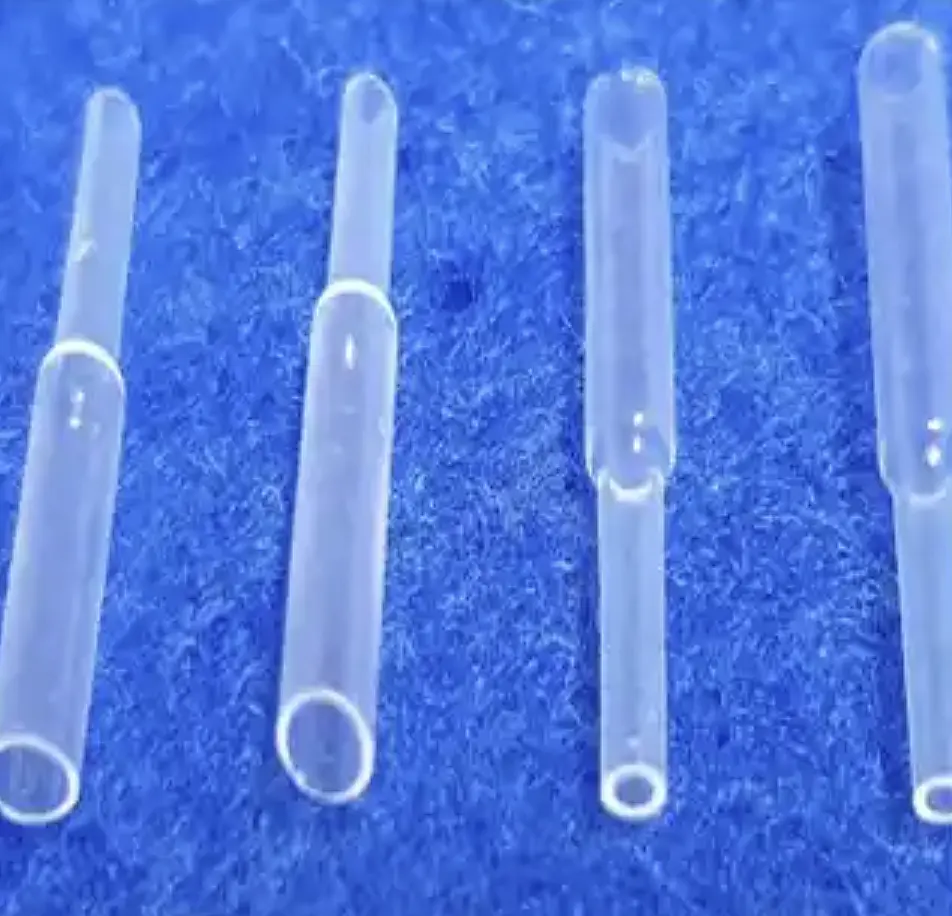

Polyvinylidene Fluoride (PVDF) is a thin-wall heat shrinkable tube made from radiation-modified polyvinylidene fluoride. It is transparent, flame retardant, resistant to high temperatures, most oils, and chemicals, as well as being durable and cut-resistant. It is widely used for protecting welding points, terminals, and connecting cables that are exposed to high temperatures, industrial fuels, solvents, and chemical agents.

PVDF heat shrink tubing Product Features:

Shrink Ratio: 2:1

Minimum Shrink Temperature: ≥+135℃

Operating Temperature: -55℃ to +150℃

Flexible, corrosion-resistant, abrasion-resistant, and cut-resistant Environmental Standard: RoHS

Standard Colors: Transparent, Black.

Performance Performance Index Test Method
Physical Performance Size Customized ASTM D 2671
Longitudinal Length Change -10%~+5% ASTM D 2671
Tensile Strength ≥24.1 MPa ASTM D 2671
Elongation at Break ≥300% ASTM D 2671
Shrink Ratio ≤40% AMS-DTL-23053
Tangent Modulus ≥172 MPa ASTM D 2671
Density ≤1.9 g/cm3 ASTM D 2671
Low-Temperature Flexibility No Cracks AMS-DTL-23053(-55℃×4h)
Thermal Shock No Dripping, No Flowing, No Cracks ASTM D 2671(250℃×4h)
Tensile Strength after Heat Aging ≥19.1 MPa ASTM D 2671(225℃×168h)
Elongation at Break after Heat Aging ≥200% ASTM D 2671(225℃×168h)
Transparency StabilityIdentification Markings Still Clear AMS-DTL-23053(200℃×24h)
Electrical Insulation Performance Dielectric Strength ≥15.7kV/mm ASTM D 2671
Volume Resistivity ≥1012Ω ·cm ASTM D 2671
Chemical Performance Copper Corrosion No Corrosion ASTM D 2671(160℃×16h)
Flame Retardant Self-extinguishing within 60s, Paper Flag Burning Degree UL224 VW-1，
ASTM D 2671 C法
Water Absorption ≤0.5% ISO 846 B法, 23℃×24h
Tensile Strength after Fungus Resistance ≥24.1 MPa ASTM D 2671
Elongation at Break after Fungus Resistance ≥300% ASTM D 2671
Dielectric Strength after Fungus Resistance ≥15.7kV/mm ASTM D 2671
Tensile Strength after Chemical Resistance ≥13.8 MPa ASTM D 2671
Elongation at Break after Chemical Resistance ≥200% ASTM D 2671
Dielectric Strength after Chemical Resistance ≥15.7kV/mm ASTM D 2671

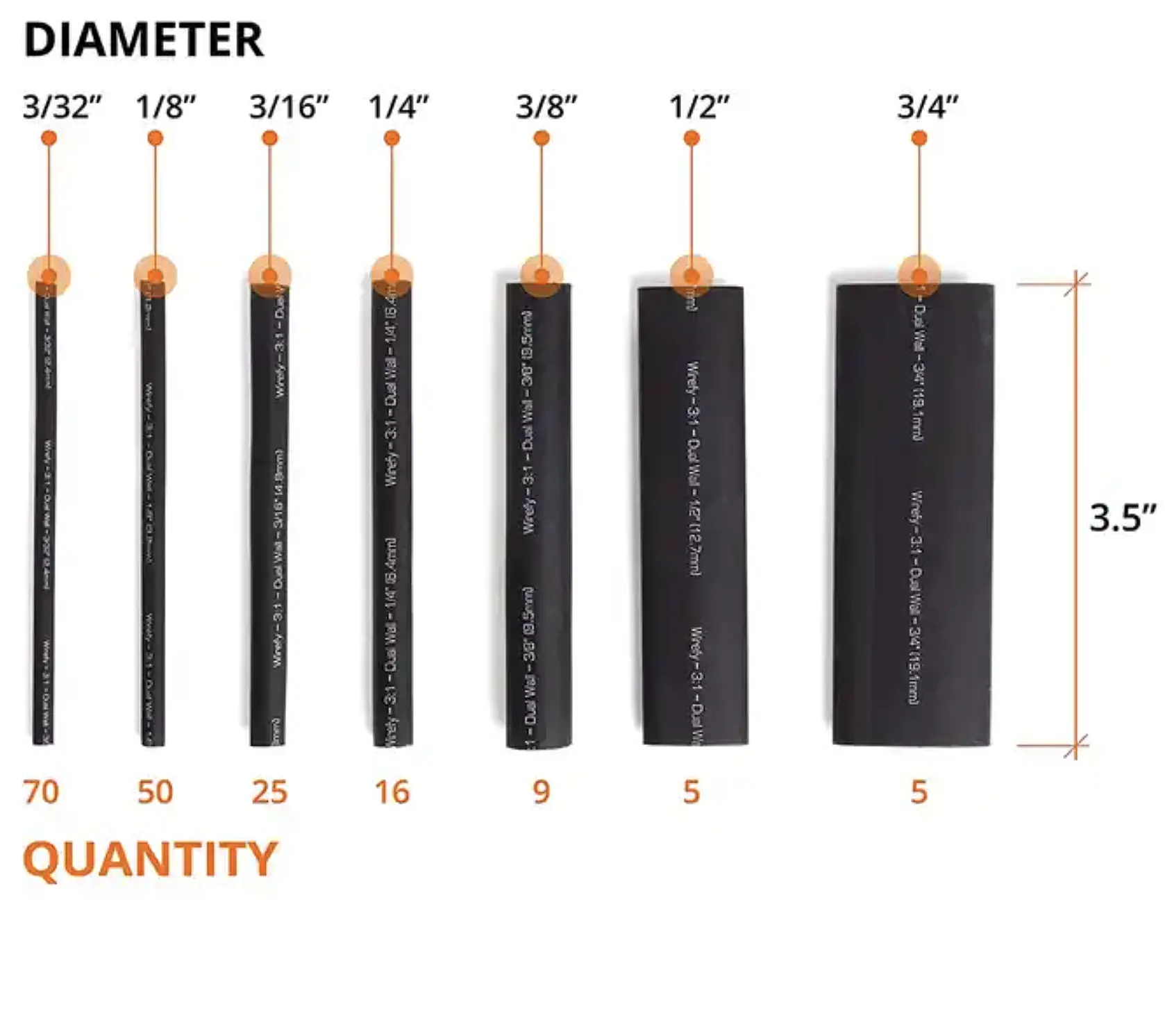

Size Product ID (mm) Size after shrinking (mm) Shape Package m/roll
Inch mm ID Wall thickness
1/32 Φ0.8 ≥0.8 ≤0.5 0.30±0. 10 Round 200
3/64 Φ1.2 ≥ 1.2 ≤0.6 0.33±0. 10 Round 200
1/ 16 Φ1.6 ≥ 1.6 ≤0.8 0.33±0. 10 Round 200
3/32 Φ2.4 ≥2.4 ≤ 1.2 0.33±0. 10 Round 200
1/8 Φ3.2 ≥3.2 ≤ 1.6 0.35±0. 10 Round 100
3/ 16 Φ4.8 ≥4.8 ≤2.4 0.35±0. 10 Round 100
1/4 Φ6.4 ≥6.4 ≤3.2 0.35±0. 10 Flat 100
3/8 Φ9.5 ≥9.5 ≤4.8 0.38±0. 10 Flat 50
1/2 Φ12.7 ≥ 12.7 ≤6.4 0.38±0. 10 Flat 50
5/8 Φ15.0 ≥ 15.0 ≤7.5 0.40±0. 10 Flat 50
3/4 Φ19. 1 ≥ 19. 1 ≤9.5 0.42±0. 10 Flat 50
1 Φ25.4 ≥25.4 ≤ 12.7 0.42±0. 10 Flat 50
1- 1/2 Φ38. 1 ≥38. 1 ≤ 19. 1 0.48±0. 10 Flat 50

175ºC PVDF heat shrink tube

Product Introduction: The 175℃ Polyvinylidene Fluoride Heat shrink tubing is made from radiation-modified polyvinylidene fluoride, offering transparency, flame retardancy, high-temperature resistance, resistance to most oils and chemicals, as well as durability and cut-resistant properties. Custom heat shrink tubing finds extensive applications in protecting welding points, terminals, and connecting cables that heat shrink tubing manufacturers are exposed to high temperatures, industrial fuels, solvents, and chemical agents.

PVDF heat shrink tubing Product Features:

Shrink Ratio: 2:1 Minimum Shrink

Temperature: ≥+175℃

Operating Temperature: -55℃ to +175℃

Flexible, corrosion-resistant, abrasion-resistant, and cut-resistant

Environmental Standard: RoHS

Standard Colors: Transparent, Black.

Performance Performance Index Test Method
Density 1.78 g/cm³ ASTM D791
Tensile Strength ≥30 MPa ASTM D2671
Elongation at Break ≥ 150% ASTM D2671
Elongation at Break after Aging ≥ 100% 250C×168h
Volume Resistivity ≥ 1014 Ω•cm IEC 60093
Flame Retardant VW- 1 UL224
Cold Bend Flexibility No cracks -55C×4h
Thermal Shock No cracks 250C×4h
Copper Corrosion No corrosion 180C×168h
Copper Stabilization Copper Stabilization 180C×168h
Size Product size (mm) Size after shrinking (mm) Shape Package m/roll
Inch mm ID Wall thickness
3/64 Φ1.2 ≥ 1.2 ≤ 0.6 0.33±0. 10 Round 200
1/ 16 Φ1.6 ≥ 1.6 ≤ 0.8 0.33±0. 10 Round 200
3/32 Φ2.4 ≥ 2.4 ≤ 1.2 0.33±0. 10 Round 200
1/8 Φ3.2 ≥ 3.2 ≤ 1.6 0.35±0. 10 Round 100
3/ 16 Φ4.8 ≥ 4.8 ≤ 2.4 0.35±0. 10 Round 100
1/4 Φ6.4 ≥ 6.4 ≤ 3.2 0.35±0. 10 Flat 100
3/8 Φ9.5 ≥ 9.5 ≤ 4.8 0.38±0. 10 Flat 50
1/2 Φ12.7 ≥ 12.7 ≤ 6.4 0.38±0. 10 Flat 50
5/8 Φ15.0 ≥ 15.0 ≤ 7.5 0.40±0. 10 Flat 50
3/4 Φ19.1 ≥ 19.1 ≤ 9.5 0.42±0. 10 Flat 50
1 Φ25.4 ≥ 25.4 ≤ 12.7 0.42±0. 10 Flat 50
1- 1/2 Φ38.1 ≥ 38.1 ≤ 19.1 0.48±0. 10 Flat 50
