Yozonetech presents a comprehensive array of PFA fine thread flare fittings, encompassing various shapes and sizes such as straight, elbow, and tee configurations. These fittings are designed to be compatible with tubing ranging from 1/4 to 1 inch in size. Demonstrating outstanding tensile strength, resistance to permeation, thermal stability, fluid flow capabilities, and resistance to deformation, fornecedor de moldagem por injeção PFA fittings are engineered to ensure secure and efficient performance, particularly in applications demanding high purity and within aggressive chemical environments. Due to these attributes, they are frequently regarded as a robust choice for applications in semiconductor production.
These PFA fittings are a vital segment of Yozonetech's range of ultrahigh-purity (UHP) fluoropolymer products. This collection also encompasses pneumatically actuated and quarter-turn manual radial diaphragm-sealed shutoff valves, check valves devoid of O-rings, and tubing, all optimized to meet the stringent demands of high-purity processes.
FEP Tube Assembly Especificação do produto
Product name: PTFE & PFA TUBE
Material: PTFE and PFA
Specification: wide range
Length: 1-60mm
Espessura: 1-10mm
Standard: ISO, RoHS, Reach, IATF16949
Color: White, black or custom colors
Application: Machinery Fittings
Working Temperature: -65 ℃~+260 ℃
Certification: ISO, RoHS, Reach, IATF16949
Packing: Carton
Factory: Yes
Customized Production: molde de injeção personalizado Disponível
Technical Data Name PTFE FEP PFA Resistência à tração 250 210 280 Extensibility 350 300 300 Dureza 55D 55D 55D Melting Point (°C) 327 279 305 High Temperature (°C) 260 200 260 Low Temperature (°C) -65 -80 -60 Non Combustion Limit Rated 94VO Rated 94VO Rated 94VO Water Uptake <0.01 <0.01 <0.01 Weathering Resistance Excelente Excelente Excelente Densidade 2.1 2.1 2.1 1MHz Permittivity 2.1 2.1 2.1 Dissipation Factor 0.0002 0.0002 0.0002 Resistance to Organic Excelente Excelente Excelente Elasticitv Bom Bom Bom -
Mangas de tubagem termorretráctil PFA para semicondutores Anti-UV e resistência a altas temperaturas
Product Overview
PFA Heat Shrink Tube is a heat-activated fluoropolymer sleeve designed to conform around components, connections, wires, terminals, tubing or other assemblies when heated. Compared with general-purpose heat shrink materials, PFA is selected when chemical resistance, thermal performance, cleanliness and fluoropolymer properties are important.
For demanding process environments, the key value of PFA heat shrink tubing is not simply shrinkage. The recovered sleeve forms a continuous protective layer while retaining the characteristic chemical resistance and high-temperature capability associated with PFA. This makes it suitable for applications where contamination control, aggressive chemicals or elevated operating temperatures can limit conventional heat-shrink materials.
Use the dimensional tables below for initial size selection. Confirm shrink ratio, recovery temperature and operating limits against the approved specification for the required PFA grade and construction.
Caraterísticas principais
High-purity fluoropolymer material for demanding process environments; Excellent resistance to many aggressive chemicals and process media; Heat-shrinkable construction for conformal protection around irregular assemblies; Low surface energy and smooth surface for easier cleaning and reduced adhesion; Strong electrical insulation performance for wire, cable and component protection; High-temperature capability compared with conventional polymer heat-shrink materials; Good transparency is possible with suitable PFA grades, supporting visual inspection; Suitable for custom dimensions and application-specific OEM production.
Why Choose PFA Heat Shrink Tubing
PFA heat shrink tubing is intended for applications where the protective sleeve itself must withstand a demanding environment. A conventional polyolefin sleeve may provide economical insulation, but it may not offer the required chemical resistance or temperature capability. PFA provides a fluoropolymer-based alternative for more severe service.
The selection should be based on the complete assembly rather than on the tube diameter alone. Installation diameter, recovered diameter, wall thickness, shrink ratio, temperature exposure, chemical environment, electrical requirements and installation method all influence the correct construction.
Product Construction
The product is manufactured from PFA fluoropolymer in a heat-shrinkable tubular construction. The tube is supplied in an expanded state and contracts toward its designed recovered dimensions when exposed to the specified heating conditions.
Base material: PFA fluoropolymer; Form: expanded heat-shrinkable tube / sleeve; Surface: smooth fluoropolymer surface; Standard appearance: natural/translucent to transparent depending on grade and wall thickness; Supply form: straight cut lengths or continuous lengths subject to product design; Construction can be tailored for dimensional, wall-thickness and installation requirements.
Technical Specifications
Parâmetro PFA specification Material PFA fluoropolymer Product Type PFA Heat Shrink Tube Construção Expanded fluoropolymer heat-shrinkable sleeve Aparência Natural / translucent / transparent depending on grade and construction Shrinkability Heat activated Expanded ID See complete dimensional table below; custom sizes available for review Recovered ID See complete dimensional table below Espessura da parede Recovered wall thickness as listed in the dimensional table Rácio de retração Product-design dependent; confirm from approved datasheet Surface Smooth, low-friction fluoropolymer surface Resistência química Excellent resistance to many chemicals; verify against the actual medium Isolamento elétrico Excellent, subject to design and application Temperature Capability Grade and application dependent; verify continuous and short-term exposure limits Comprimento Standard table length: 1 m; other lengths subject to agreement Cor Natural fluoropolymer appearance; other options subject to grade/availability Customization Dimensions, wall thickness, length, tolerances, packaging and OEM requirements Complete PFA Heat Shrink Specification Table
PFA heat shrink tubing is available in the same dimensional specifications as our FEP heat shrink tubing. Use the expanded ID, recovered ID and recovered wall thickness below to select the required size. All diameter and wall dimensions are in mm.
Expanded ID mm Recovered ID mm Recovered wall mm Standard length m ≥3.8 ≤2.7 0.2 ± 0.03 1 ≥4.5 ≤3.3 0.2 ± 0.03 1 ≥5.5 ≤4.3 0.2 ± 0.03 1 ≥7.0 ≤5.1 0.2 ± 0.03 1 ≥7.9 ≤6.0 0.2 ± 0.03 1 ≥10.6 ≤7.4 0.3 ± 0.03 1 ≥12.5 ≤8.8 0.3 ± 0.05 1 ≥14.5 ≤10.7 0.3 ± 0.05 1 ≥19 ≤12.8 0.4 ± 0.05 1 ≥21 ≤16.5 0.5 ± 0.05 1 ≥24 ≤18.5 0.5 ± 0.05 1 ≥26 ≤19.5 0.5 ± 0.05 1 ≥30 ≤21.5 0.5 ± 0.05 1 ≥82 ≤24 0.5 ± 0.05 1 ≥91 ≤64 0.5 ± 0.05 1 ≥106 ≤82 0.6 ± 0.05 1 ≥118 ≤96 0.6 ± 0.05 1 ≥136 ≤103 0.6 ± 0.05 1 ≥156 ≤125 0.6 ± 0.05 1 Expanded ID is the minimum inner diameter before shrinkage; recovered ID is the maximum inner diameter after shrinkage. Wall thickness is specified after recovery. Standard packaging length is 1 m.
The ≥82 mm expanded ID / ≤24 mm recovered ID entry is retained from the shared specification table and requires confirmation before ordering. Do not infer a universal shrink ratio from the listed dimensions.
The shared sizes do not establish identical material performance or recovery conditions for FEP and PFA. Confirm the PFA grade, recovery instructions, dimensional acceptance limits and application requirements with the quotation.
Additional PFA Size Options
The following recovered ID and wall thickness combinations are additional size examples. Specify the expanded ID, recovery requirements and required length when requesting a quotation.
Recovered ID mm Wall thickness mm 1.6 0.15 3.6 0.1 8 0.3 16 0.25 30 0.35 130 0.5 180 0.55 200 0.6 Other dimensions, lengths and tolerances can be evaluated to suit drawings or samples. Stock availability and production lead time are confirmed at quotation.
Pressure and temperature limits depend on the exact PFA grade, construction, dimensions, installation and service conditions. Confirm the requirements for the selected product.
Shrink Ratio and Dimensional Selection
The most important sizing principle is to evaluate both the expanded and recovered dimensions. The expanded inside diameter must be large enough to pass over the component during installation, while the recovered inside diameter must provide the required fit after heating.
Expanded ID: larger than the maximum installation diameter, with suitable installation clearance; Recovered ID: compatible with the finished assembly diameter; Wall thickness: selected according to insulation, protection, mechanical and thermal requirements; Shrink ratio: confirm against the approved product datasheet rather than assuming one ratio for the whole PFA range; Length: account for assembly geometry, cut tolerance and axial movement during recovery; For irregular parts, provide a drawing or sample so the recovered fit can be evaluated.
High Purity and Process Cleanliness
For semiconductor, analytical, chemical and other controlled environments, PFA is often chosen because of its strong chemical resistance and fluoropolymer cleanliness characteristics. The heat-shrink format extends these benefits to protective sleeves around components and connections.
Cleanliness requirements should be specified separately. If the application requires controlled particulate, extractables, trace-metal, ionic or other contamination limits, the customer should identify the required standard and the supplier should confirm the exact material grade, processing controls and documentation.
Resistência química
PFA provides broad resistance to many acids, bases, solvents and aggressive process chemicals. This is particularly valuable when the sleeve is exposed to the surrounding process environment or when it is used to protect a sensitive connection from chemical attack.
Chemical compatibility is application-specific. Temperature, concentration, exposure time, mechanical stress and permeation can change material performance. For critical service, compatibility should be confirmed for the actual chemical and operating conditions.
Isolamento elétrico
PFA is an electrically insulating fluoropolymer and can be used as a protective sleeve for wires, terminals, splices and electrical components. The heat-shrink construction allows the material to conform around the assembly and provide a continuous insulating barrier.
Wire and cable insulation reinforcement; Terminal and connector protection; Splice and joint insulation; Protection of sensitive electrical components; High-temperature electrical isolation where conventional shrink materials are unsuitable.
Temperature Performance
PFA is selected for high-temperature environments, but heat-shrink installation temperature and service temperature are different parameters. The recovery process must be performed within the approved processing window, while the finished assembly must remain within the continuous and short-term temperature limits of the specific product.
Recovery temperature: confirm from the exact product specification; Continuous operating temperature: confirm from the exact PFA grade and construction; Short-term exposure: evaluate separately where thermal excursions occur; Mechanical load at elevated temperature: consider when the sleeve carries or restrains a component; Chemical exposure at elevated temperature: verify compatibility under the actual process conditions.
PFA Heat Shrink Tube vs PTFE Heat Shrink Tube
Desempenho PFA Heat Shrink Tube PTFE Heat Shrink Tube Resistência química Excelente Excelente High-Purity Applications Strong fit for demanding process applications Strong fit depending on grade and process requirements Transparency / Visual Inspection Good to excellent depending on grade and wall Typically less transparent Heat-Shrink Function Excellent when supplied in shrinkable construction Excellent when supplied in shrinkable construction Isolamento elétrico Excelente Excelente High-Temperature Service High; verify exact grade Very high; verify exact grade Typical Positioning High-purity chemical/process protection and critical assemblies High-temperature chemical, electrical and component protection The choice should be made from the actual temperature, purity, transparency, chemical and installation requirements rather than by material name alone.
PFA Heat Shrink Tube vs Standard PFA Tube
Aspect PFA Heat Shrink Tube Standard PFA Tube Função principal Protective sleeve / conformal covering Fluid transfer, insulation or containment Installation Heated to recover around a component Installed as a fixed tube Recovered Fit Designed to conform to assembly Fixed manufactured dimensions Typical Use Connections, wires, terminals, component protection Chemical and high-purity fluid handling Key Selection Data Expanded ID, recovered ID, wall, shrink ratio ID, OD, wall, tolerance, length PFA Heat Shrink Tube vs Other Heat Shrink Materials
Material Main Advantage When PFA Is Preferred Poliolefina Economical, general-purpose electrical protection Higher chemical resistance and temperature performance are required PVDF Chemical resistance with useful mechanical properties Higher fluoropolymer purity/temperature requirements justify PFA Silicone Flexible and soft Chemical resistance and fluoropolymer performance are more important PTFE Excellent chemical and high-temperature performance PFA is preferred where transparency, process cleanliness or specific PFA processing characteristics are important Certificações
PFA（REACH）Certification
PFA（Rohs）Certification
PFA-PFos Certification
PFA-FDA Certification
Typical Applications
Semiconductor manufacturing and process equipment; Chemical processing equipment; High-purity fluid and chemical handling assemblies; Electrical and electronic components; Wire, cable and terminal protection; Laboratory and analytical equipment; Sensors and instrumentation; Medical and life-science equipment where the exact grade and compliance are approved; Industrial equipment exposed to aggressive chemicals or elevated temperatures; OEM component encapsulation and connection protection.
Manufacturing and Quality Control
Dimensional consistency, surface quality and cleanliness depend on appropriate manufacturing controls. Relevant controls may include incoming material verification, extrusion-process control, dimensional and visual inspection, shrink-performance verification and lot traceability.
Raw material and grade verification; Dimensional measurement of expanded tubing; Wall-thickness and concentricity control where applicable; Visual inspection for contamination and surface defects; Shrink-performance verification according to the approved product specification; Electrical testing where required by the application; Lot identification and traceability; Packaging selected to protect the product from contamination during storage and shipment.
Custom PFA Heat Shrink Tube
Yozonetech can support application-specific PFA heat shrink tubing where standard dimensions do not match the assembly. Customization should be defined from the installation geometry and finished requirement.
Expanded inside diameter; Recovered inside diameter; Wall thickness; Shrink ratio; Length or continuous supply; Cut-piece tolerance; Dimensional tolerances; Packaging and labeling; OEM drawings and samples; Application-specific material and compliance documentation.
Recommended RFQ format: Expanded ID × Recovered ID × Wall Thickness × Length × Quantity. If possible, also provide the maximum installation OD, target recovered OD, operating temperature, chemical medium and a drawing or sample.
Porquê escolher a Yozonetech
Focused experience in fluoropolymer tubing and engineered plastic products; Product portfolio covering PTFE, PFA, FEP, ETFE and related fluoropolymer solutions; Application-oriented material selection rather than commodity-only supply; Custom dimensions and OEM manufacturing support; Support for samples, technical evaluation and production requirements; Quality documentation and compliance support for applicable grades.
Certifications and Compliance
Compliance documentation should be linked to the exact material grade and finished product. Depending on the product and application, Yozonetech can support documentation such as FDA-related material documentation, RoHS, REACH, ISO 9001 and IATF 16949 documentation where applicable.
Certifications and documentation are product- and grade-specific. Request the applicable documentation for the exact product supplied.
FAQ
What is PFA heat shrink tube used for
It is used as a heat-recovered protective sleeve for components, connections, wires, terminals and assemblies exposed to chemicals, heat or demanding electrical environments.
Is PFA heat shrink tube transparent
Many PFA constructions offer natural translucency or transparency, but appearance depends on grade, wall thickness and processing.
What is the shrink ratio
The shrink ratio is construction-specific and should be confirmed from the approved product datasheet.
Can PFA heat shrink tube be used with aggressive chemicals
PFA has broad chemical resistance, but compatibility should be confirmed for the actual chemical, concentration, temperature and exposure time.
Can it be used for semiconductor applications
Yes, PFA is well suited to many semiconductor and high-purity applications, provided the exact grade, processing and cleanliness requirements are approved.
Is PFA heat shrink tube electrically insulating
Yes. PFA is an electrically insulating fluoropolymer and can be used for electrical protection when the dimensions and application are properly designed.
Can you supply custom sizes
Yes. Custom expanded/recovered dimensions, wall thickness, lengths and OEM requirements can be evaluated. The standard dimensional range matches our FEP heat shrink tubing; additional sizes can be reviewed.
Can PFA heat shrink tube replace PTFE heat shrink tube
Sometimes. The choice depends on temperature, transparency, purity, chemical environment and processing requirements.
What information is needed for a quotation
Provide expanded ID, recovered ID or target fit, wall thickness if known, length, quantity, operating conditions and preferably a drawing or sample.
Does the finished tube have a universal temperature rating
No. Service temperature depends on the exact PFA grade, construction, installation and exposure conditions.
Request a Quote
Tell us the assembly dimensions and operating conditions. Our team can help evaluate the appropriate PFA heat shrink construction, dimensions and documentation.
Correio eletrónico: ptfetube@yozonetech.cn
Website: chinaptfetube.com
-
Tubo termo-retrátil PFA
YOZONE dedica-se a fornecer tubos termorretrácteis PFA de alta qualidade que cumprem os mais elevados padrões da indústria. Os nossos Tubos PFA são concebidos para uma excecional resistência química, estabilidade de temperatura e flexibilidade, tornando-os ideais para uma vasta gama de aplicações, incluindo processamento químico, fabrico de semicondutores e dispositivos médicos. Com um dimensionamento preciso e várias opções de cores, a YOZONE garante que os nossos tubos termorretrácteis PFA não só proporcionam um desempenho excecional, mas também satisfazem as necessidades específicas dos nossos clientes. Confie na YOZONE para obter soluções fiáveis e duradouras que melhoram a segurança e a eficiência dos seus projectos.
O tubo termorretráctil PFA (Perfluoroalcoxi) é um tipo de tubagem pfa fabricado a partir de um fluoropolímero conhecido pela sua excelente resistência química, estabilidade a altas temperaturas e propriedades de baixa fricção. É utilizado numa variedade de aplicações em que é necessário um isolamento e uma proteção fiáveis.
Ts normas de dimensão para tubos termorretrácteis PFA
Os tubos termorretrácteis PFA são fornecidos em vários tamanhos, geralmente normalizados por:
1. diâmetro interno (ID): Variando de 1mm a 50mm ou mais, dependendo das necessidades da aplicação.
2. espessura da parede: As espessuras de parede comuns variam entre 0,1 mm e 0,5 mm.
3. comprimento: Normalmente disponível em comprimentos de 1m, 5m ou 10m.
Tubo termorretráctil PFA Especificação Opções standard
Especificação Opções standard Diâmetro interior (ID) 1mm - 50mm Espessura da parede 0,1 mm - 0,5 mm Comprimento 1m, 5m, 10m Tubo termorretráctil PFA Colors
Os tubos termorretrácteis PFA estão normalmente disponíveis numa variedade de cores, incluindo:
Transparente
Natural (transparente)
Preto
Vermelho
Verde
Azul
Amarelo
Os tubos termorretrácteis PFA têm propriedades de resistência ao fogo?
Os tubos termorretrácteis PFA possuem excelentes propriedades de resistência ao fogo. É classificado como um material auto-extinguível, o que significa que, quando exposto a chamas ou a temperaturas elevadas, não continuará a arder depois de a fonte de ignição ser removida. Esta caraterística torna o PFA particularmente valioso em aplicações em que a segurança contra incêndios é fundamental, como nos sectores aeroespacial, automóvel e industrial.
A capacidade do PFA de resistir à combustão reduz significativamente o risco de incêndio, especialmente em ambientes onde estão presentes calor e componentes eléctricos. Além disso, a sua baixa emissão de fumo durante a combustão aumenta ainda mais a segurança, uma vez que minimiza o potencial de inalação de fumo em caso de incêndio. Consequentemente, os tubos termorretrácteis PFA são a escolha ideal para proteger a cablagem e os componentes em sistemas críticos onde a resistência ao fogo é um requisito vital, proporcionando tranquilidade aos engenheiros e profissionais de segurança.
Os tubos termorretrácteis PFA são compatíveis com outros materiais?
Os tubos termorretrácteis PFA são geralmente compatíveis com uma vasta gama de materiais, incluindo metais, plásticos e borracha. No entanto, é essencial ter em conta a aplicação específica e as interações químicas com outros materiais para garantir um desempenho ótimo.
Qual é o desempenho anti-estático dos tubos termorretrácteis PFA?
Os tubos termorretrácteis PFA apresentam um bom desempenho antiestático, ajudando a evitar a acumulação de eletricidade estática. Esta caraterística é particularmente importante em ambientes onde a descarga estática pode danificar componentes electrónicos sensíveis ou criar riscos de incêndio.
YOZONE é um líder tubos termorretrácteis personalizados fabricante e fornecedor especializado em soluções de fluoropolímero de alta qualidade, incluindo tubos termorretrácteis PFA. Com um compromisso de inovação e excelência, a YOZONE utiliza tecnologia avançada e rigorosos processos de controlo de qualidade para garantir que os nossos produtos cumprem os mais elevados padrões da indústria. Fabricantes de tubos PFA A extensa gama de tubos PFA foi concebida para uma resistência química superior, estabilidade de temperatura e flexibilidade, tornando-a ideal para aplicações exigentes em sectores como o fabrico de semicondutores, processamento químico e dispositivos médicos.
-

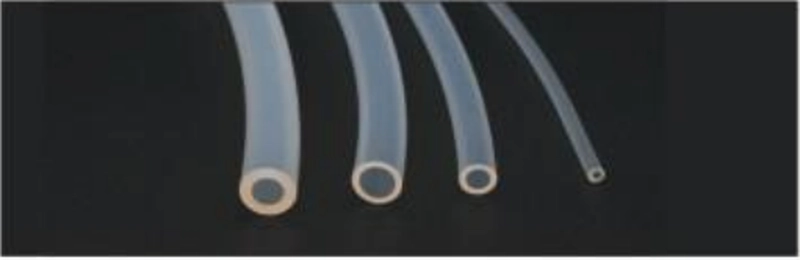

PFA 100% Tubo extrudido transparente virgem Fornecedores OEM para semicondutores
Product Overview
Metric and inch PFA tubing for chemical semiconductor and industrial fluid handling
PFA tubing is extruded from perfluoroalkoxy fluoropolymer for demanding fluid-handling, chemical-processing, semiconductor, laboratory and industrial applications. It combines broad chemical resistance and thermal stability with a clear or translucent appearance and melt processability. These properties make it useful where clean fluid paths, visual inspection and consistent tube geometry matter.
Yozonetech supplies standard metric and inch tubing, with custom inner diameter, outer diameter, wall thickness and length available for review. Suitable dimensions can be supplied in coils or straight lengths. For high-purity service, define the resin grade, processing controls, cleanliness and packaging requirements together.
Why Choose PFA Tubing？
Desempenho Engineering / Application Value High Purity Suitable for fluid systems where contamination control and material cleanliness are important; exact grade and processing requirements should be specified. Excellent Chemical Resistance Resists a broad range of aggressive chemicals and process media; compatibility should be verified for the exact medium, concentration and temperature. High Transparency The clear or translucent appearance can support visual monitoring of fluid condition, flow and contamination in suitable systems. High-Temperature Stability Maintains useful performance in demanding thermal environments; actual operating limits depend on grade, dimensions, pressure and service conditions. Smooth Internal Surface Supports low-adhesion fluid pathways and helps reduce locations where process residues may accumulate. Low Moisture Absorption Helps maintain stable material behavior in humid or wet environments. Melt-Processable Fluoropolymer PFA can be processed by melt-extrusion methods, enabling consistent tubing production and complex fluoropolymer constructions. Low Extractables / Clean Fluid Handling Appropriate PFA grades are commonly considered where fluid purity and low contamination are critical; final suitability must be verified for the application. PFA also provides electrical insulating properties and low moisture absorption. Define the required electrical, environmental and cleanliness performance for the supplied tube and complete installation.
PFA Tube Product Range
Product Type Typical Positioning Standard PFA Tube General-purpose PFA tubing for chemical, laboratory, industrial and fluid-handling systems. High-Purity PFA Tube Selected grades and controlled processing for demanding cleanliness and contamination-control requirements. Transparent PFA Tube Clear tubing where visual inspection of flow, bubbles or fluid condition is useful. Thin-Wall PFA Tube Compact tubing for instrumentation, analytical equipment and applications where reduced wall thickness is appropriate. Thick-Wall PFA Tube Higher-wall construction for greater mechanical robustness; pressure suitability must be confirmed for the exact dimensions. Small-Bore PFA Tube Small-ID tubing for instrumentation, sampling, reagent delivery and compact fluid paths. Custom PFA Tube Application-specific ID, OD, wall thickness, length, packaging or other agreed requirements. Special PFA Constructions Special configurations may be evaluated for application-specific routing, purity or assembly requirements. Aplicações
Indústria Typical Uses Semiconductor & Electronics High-purity chemical delivery, wet-process equipment, reagent lines, instrumentation and clean fluid pathways. Chemical Processing Corrosive chemical transfer, sampling, reagent handling, process lines and laboratory systems. Pharmaceutical & Bioprocess High-purity fluid pathways and process tubing where the specified grade and documentation meet the application requirements. Laboratory & Analytical Equipment Sampling lines, reagent delivery, instrument connections and transparent process paths. Medical / Life Science Selected fluid-management applications subject to exact material, cleanliness and regulatory requirements. Food & Beverage Suitable fluid-contact applications where the exact PFA grade meets the required compliance standard. Equipamento industrial Chemical-resistant fluid routing, pump connections, instrumentation and protective tubing. Electrical / High-Voltage Selected insulation and protective applications requiring fluoropolymer electrical performance. For food-contact, pharmaceutical, medical or other regulated applications, confirm the exact material grade, product qualification and required documentation before ordering. Application names describe potential uses; suitability depends on the supplied product and service conditions.
Metric Dimensions
DKP series. Standard series length: 100 m. Dimensions are outer diameter × inner diameter in millimeters.

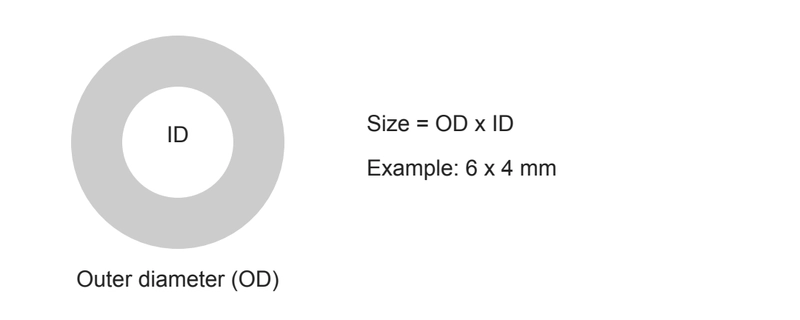

Modelo OD × ID (mm) Pressure group DKP-0201 2 × 1 A DKP-0302 3 × 2 C DKP-0425 4 × 2.5 B DKP-0403 4 × 3 D DKP-0604 6 × 4 C DKP-0806 8 × 6 D DKP-1075 10 × 7.5 D DKP-1008 10 × 8 E DKP-1209 12 × 9 D DKP-1210 12 × 10 F DKP-1613 16 × 13 E DKP-1916 19 × 16 F DKP-2522 25 × 22 G
Listed metric sizes range from 2 × 1 mm to 25 × 22 mm. Standard PFA tubing is separate from the conductive-strip construction offered as Anti-Static PFA Tubing.
Metric Maximum Operating Pressure
Maximum operating pressure in MPa at the stated temperature. Match the complete model to its group.
Group Models 20°C 100°C 200°C 260°C A DKP-0201 2.3 1.1 0.55 0.3 B DKP-0425 1.7 0.9 0.45 0.23 C DKP-0302, DKP-0604 1.5 0.7 0.35 0.2 D DKP-0403, DKP-0806, DKP-1075, DKP-1209 1 0.5 0.25 0.15 E DKP-1008, DKP-1613 0.7 0.35 0.17 0.11 F DKP-1210, DKP-1916 0.6 0.3 0.15 0.1 G DKP-2522 0.4 0.2 0.1 0.05

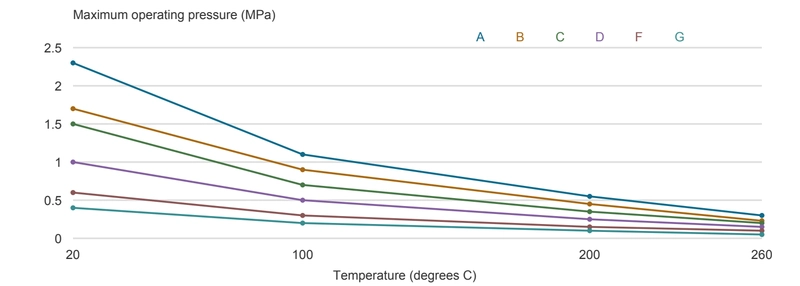

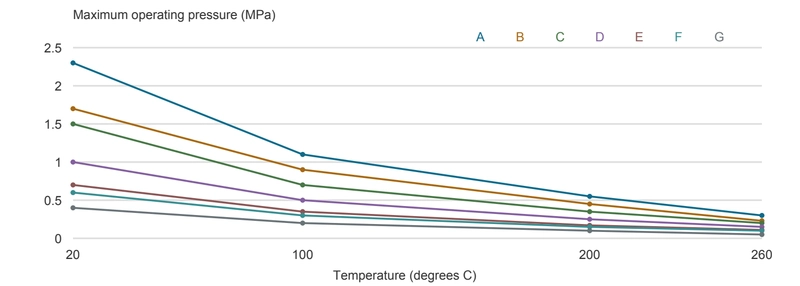

Seven groups are shown. The vertical axis represents maximum operating pressure from 0 to 2.5 MPa; the horizontal axis represents temperature. Curves connect the tabulated reference points; intermediate-temperature ratings require confirmation.
Operating Index
Item Especificação Using fluids Air, water and inert gas Maximum operating pressure Refer to the model-specific pressure table and curve Maximum operating temperature 260°C Material PFA resin The temperature limit and pressure rating must be considered together. Confirm the allowable working conditions of both tubing and fittings for the installation.
Inch Dimensions
DKIP series. Standard series length: 100 m. All inch and millimeter values below retain the source values.
Dimension DKIP-1 DKIP-2 DKIP-3 DKIP-4 DKIP-5 DKIP-6 DKIP-7 DKIP-8 DKIP-9 OD (inch) 1/8 1/8 3/16 1/4 3/8 1/2 3/4 1 1-1/4 OD (mm) 3.18 3.18 4.75 6.35 9.53 12.7 19.05 25.4 31.75 ID (inch) 0.086 1/16 1/8 5/32 1/4 3/8 5/8 7/8 11/10 ID (mm) 2.18 1.58 3.15 3.95 6.33 9.5 15.85 22.2 27.95 Inch Maximum Operating Pressure
Group Models 20°C 100°C 200°C 260°C A DKIP-2 2.3 1.1 0.55 0.3 B DKIP-4 1.7 0.9 0.45 0.23 C DKIP-3, DKIP-5 1.5 0.7 0.35 0.2 D DKIP-1, DKIP-16* 1 0.5 0.25 0.15 F DKIP-7 0.6 0.3 0.15 0.1 G DKIP-8, DKIP-9 0.4 0.2 0.1 0.05 * The source pressure table prints DKIP-16, while its dimensional table lists DKIP-1 through DKIP-9. Confirm the intended model before specifying the Group D rating. The printed 11/10 inch ID and 27.95 mm value are retained.
Six groups are shown: A, B, C, D, F and G. The vertical axis covers 0–2.5 MPa. Using fluids: air, water and inert gas. Material: PFA resin. Maximum operating temperature: 260°C. Use the pressure table for the relevant model and temperature.
Minimum Bending Data
The source index gives the following sequences. Column numbers preserve their printed order; they do not establish a model-by-model assignment.
Metric index 1 2 3 4 5 6 7 8 9 10 11 12 Recommended 10 20 20 35 35 60 95 100 100 130 220 400 Yield 7 15 15 20 20 40 60 65 65 110 160 290 Inch index 1 2 3 4 5 6 7 8 9 10 11 12 13 Recommended 10 20 20 35 35 60 95 100 100 130 160 220 400 Yield 7 15 15 20 20 40 60 65 65 110 130 160 290 Use a bending radius greater than the recommended value. Bending below it can cause tube damage. The yield value is described as twice the radius when folding or rupture occurs in the illustrated test; it is not a guaranteed service value.

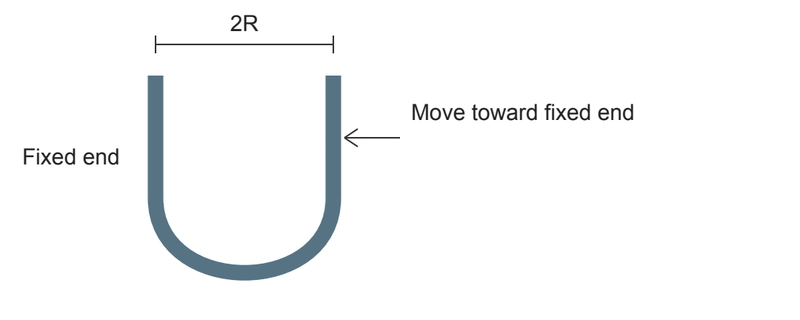

Test method: at 20°C, bend the tube into a U shape, fix one end and gradually move the other end toward it. Measure 2R when the bent section’s outer-diameter deformation reaches 5%.
Fluid Use and Installation
Suitable fittings and fluids vary. For liquids, keep instantaneous impact pressure within the maximum operating pressure. Excess impact pressure may damage joints or rupture the tube. Abnormal temperature rise caused by adiabatic compression may also cause rupture.
Avoid shaking or vibrating conditions. Operating pressure must remain below the allowable tube and fitting limits. Long-term or high-temperature use can change the material and cause leakage; inspect and maintain the installation regularly.
Technical Specifications
- Physical & Chemical Properties of Fluororplastics
- SPECIFIC GRAVITY
- TECHNICAL NOTE for FLIUOROPOLYMER
Certificações
PFA（REACH）Certification
PFA（Rohs）Certification
PFA-FDA Certification
PFA-PFos Certification
PFA Tubing Certification
How to Select the Right PFA Tube
Selection Step What to Define 1. Identify the Medium Chemical, solvent, water, gas, reagent, process fluid or other conveyed medium. 2. Define Purity Requirements Determine whether standard industrial, clean, high-purity or application-specific material control is required. 3. Define Temperature Specify minimum, normal and maximum operating temperature, including short-term peaks. 4. Define Pressure Provide working pressure, peak pressure, pressure cycles and pulsation if applicable. 5. Specify Dimensions ID, OD and wall thickness determine flow, fit, mechanical behavior and pressure capability. 6. Check Transparency Needs If operators need to visually monitor flow, bubbles or contamination, transparent PFA may be advantageous. 7. Check Flexibility / Routing Consider bend radius, installation path, movement and whether a different construction is required. 8. Confirm Compliance State FDA, RoHS, REACH, USP Class VI or customer-specific requirements where applicable. 9. Define Packaging Specify coil length, straight-cut length, cleanliness, protective packaging, labeling and quantity. Custom PFA Tube Solutions
Provide the required ID, OD, wall thickness and tolerances, together with coil or straight-cut length. Small-bore, thin-wall and thick-wall constructions can be reviewed against tooling and production capability. Natural appearance, special configurations, OEM labeling and packaging can be specified for confirmation.
For high-purity applications, include material and process controls, cleanliness criteria, protective packaging and required reports. A drawing or sample helps define nonstandard geometry and connection requirements.
Temperature and Pressure Selection
Use the actual operating temperature when selecting the pressure rating. Include working and peak pressure, pulses, thermal cycles, fitting limits, routing, installation stress and unsupported spans. For higher-pressure service, request confirmation for the exact tube size and construction.
PFA PTFE and FEP Comparison
Imóveis PFA PTFE FEP Resistência química Broad resistance; verify the exact medium Broad resistance; verify the exact medium Broad resistance; verify the exact medium High-purity applications Grade, processing and packaging dependent Grade, processing and packaging dependent Grade, processing and packaging dependent Transparência Clear or translucent; grade dependent Typically opaque or translucent Clear or translucent; grade dependent Melt processing Melt processable No conventional melt processing Melt processable Low adhesion Fluoropolymer surface Fluoropolymer surface Fluoropolymer surface Thermal service Use size-specific temperature-pressure data Confirm product-specific service limits Confirm product-specific service limits Typical selection focus Transparent, demanding fluid paths Chemical service, insulation and low friction Transparent chemical tubing and fluid paths Choose the material against the medium, temperature, pressure, cleanliness and installation requirements. A general material comparison does not replace the specification of the finished tubing.
Manufacturing and Quality Control
Consistent tube performance depends on resin selection, extrusion, dimensional control and final inspection. For high-purity applications, process cleanliness and packaging are additional parts of the specification.
Process Quality Focus Material Selection Select PFA resin/grade according to purity, chemical, thermal, electrical and regulatory requirements. Material Preparation Condition and prepare material according to the selected extrusion process. Extrusion Control tooling, temperature and process parameters to establish stable tube geometry. Sizing & Cooling Control OD, ID and wall geometry during sizing and cooling. Dimensional Inspection Check ID, OD, wall thickness, length and appearance against the agreed specification. Surface / Cleanliness Check Evaluate surface condition and cleanliness requirements where the application demands them. Cutting / Coiling Supply controlled straight lengths or coils with suitable protective packaging. Final Inspection Verify dimensions, appearance, labeling, packaging and order-specific requirements before shipment. Why Choose Yozonetech？
Yozonetech Advantage Customer Value Manufacturer Direct Direct manufacturing supply for fluoropolymer tubing and related products. Broad Fluoropolymer Range PTFE, PFA, FEP, ETFE and PVDF tubing options support material selection across different applications. Custom Dimensions Application-specific ID, OD, wall thickness and length can be evaluated. OEM / ODM Support Suitable for customized industrial programs and repeat production requirements. Application-Oriented Support Technical discussion can be based on medium, purity, temperature, pressure, dimensions and compliance needs. Documentation Support Applicable technical and compliance documents can be provided according to the selected product and market. Integrated Product Portfolio PFA can be combined with PTFE/FEP tubing, heat-shrink tubing and reinforced hose solutions for broader system requirements. Documentation and Compliance Requirements
Tell us which technical reports, declarations or certificates your application requires. Food-contact documentation, RoHS, REACH, USP Class VI or other product-specific requirements must be confirmed for the exact grade and supplied tubing.
If your procurement system requires ISO 9001, ISO 14001, ISO 45001, IATF 16949 or another management-system certificate, identify the required standard and scope in the inquiry. Availability, validity and applicability must be confirmed with the quotation.
Request a PFA Tube Quote
Information Recommended Details Required Dimensions ID × OD or ID × wall thickness Comprimento Coil length or straight-cut length Médio Chemical / gas / water / reagent / process fluid / other Purity Standard / clean / high-purity / customer-specific Temperatura Minimum / normal / maximum operating temperature Pressure Working pressure and peak pressure Quantity Sample / trial / batch / annual demand Compliance FDA / RoHS / REACH / USP Class VI / customer standard Aplicação Equipment, industry and installation conditions Send your dimensions or drawing and operating requirements so Yozonetech can review the appropriate grade, size and manufacturing specification. Confirm pricing, minimum order quantity, documentation and delivery timing against the agreed product.
Correio eletrónico: ptfetube@yozonetech.cn
Website: www.chinaptfetube.com
Frequently Asked Questions
1 How do I choose the right PFA tubing size
Specify the required outer diameter (OD) and inner diameter (ID), together with your fitting dimensions and flow requirements. Send us your existing tube specification or equipment drawing, and we can review the corresponding metric or inch option before quotation.
2 Can I order both metric and inch PFA tubing
Yes. Our listed range includes 13 metric sizes and nine inch models. Provide the exact OD and ID rather than relying only on the nominal size, so we can confirm the tubing matches your connections.
3 Can you supply a size that is not listed
Send your required OD, ID, tolerances, length and quantity. We will review production feasibility and confirm availability, minimum order quantity and lead time for the requested size.
4 What working pressure should I specify
Provide your normal and maximum pressure, operating temperature and fitting details. The permitted pressure varies by tube size and temperature. We can review the relevant pressure group and identify any specifications that need confirmation before you order.
5 Can PFA tubing operate at 260°C
The listed maximum operating temperature is 260°C, with reduced pressure limits at elevated temperatures. Tell us your temperature, pressure and exposure duration so we can review the proposed tube and connection requirements together.
6 Is this PFA tubing suitable for my process fluid
The operating index lists air, water and inert gas. For other media, send the chemical name, concentration, temperature and cleaning agents. We can review the material requirements and identify whether additional compatibility evidence is needed.
7 What lengths can I order
The metric and inch series tables specify 100 m lengths. If you need another roll length or cut pieces, include the required length and tolerance in your inquiry. We will confirm the available supply format for your selected size.
8 Can I request samples before placing a production order
Yes. Contact us with the size, quantity and intended evaluation. We will confirm sample availability, pricing and delivery details so you can assess fitting compatibility and installation before committing to a larger order.
9 What inspection records or material documents can you provide
State which documents you require, such as material identification, dimensional inspection results or application-specific test reports. We will confirm the available documentation and any additional inspection scope with the quotation.
10 How can I get an accurate quotation and delivery estimate
Send the OD × ID or model number, required length, quantity, tolerances and delivery destination. Include the operating medium, temperature, pressure and documentation requirements. With these details, we can confirm the proposed specification, price, minimum order quantity and lead time.
